Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

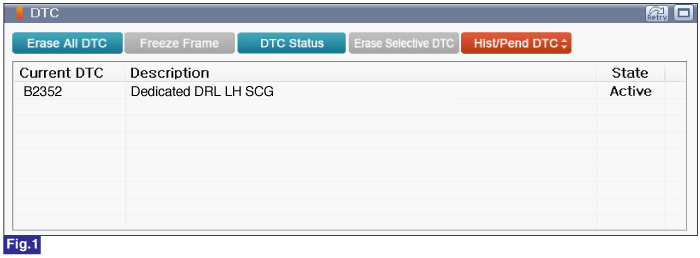

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Actuation Test" mode.

Perfom "Dedicated DRL Output" in the "Actuation Test" with GDS.

Fig.1) "Dedicated DRL Output" of Actuation Test

Fig.2) When the DRL Lamp operates on performing Actuation Test of "Dedicated DRL Output"

Is the LH DRL lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
