1.

Ignition "OFF".

2.

Connect GDS.

3.

Ignition "ON" and engine "OFF".

4.

Select "Diagnostic Trouble Codes(DTC)" mode.

5.

Check for any DTCs on the "Diagnostic Trouble Code(DTC)" with GDS.

6.

Erase DTC.

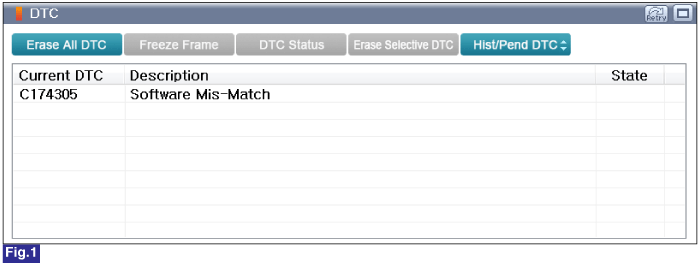

Fig.1) Diagnostic Trouble Code(DTC) is shown above

7.

After erase DTC Check for any DTCs again.

8.

Is the same DTC occurred again?

	▶ Go to "Component Inspection" procedure.
	▶ Fault is intermittent caused by poor contact in the BSD ECU's connector or was repaired and BSD ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
