4.
Check for Outside Mirror LED operation.

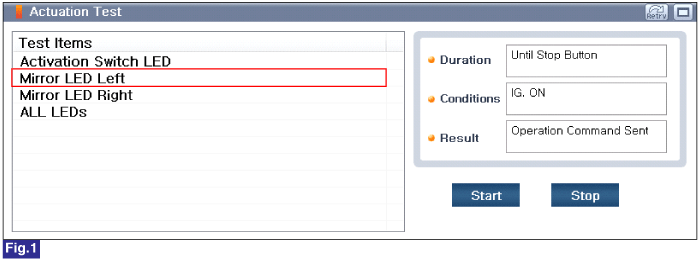

Fig.1) "Mirror LED Left" of Actuation Test

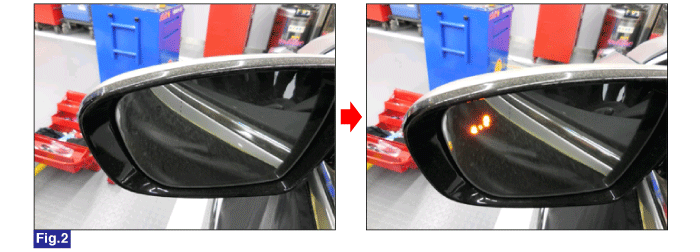

Fig.2) When the Outside Mirror LED operates on performing Actuation Test of "Mirror LED Left"
Connect GDS to Data Link Connector(DLC).
Ignition "ON".
Perfrom "Mirror LED Left" in "Actuation Test" with GDS.
Check for Outside Mirror LED operation.
Fig.1) "Mirror LED Left" of Actuation Test
Fig.2) When the Outside Mirror LED operates on performing Actuation Test of "Mirror LED Left"
Does Outside Mirror LED work properly?
 | ▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace Outside Mirror assembly and then go to "Verification of Vechicle Repair" procedure. |
