Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

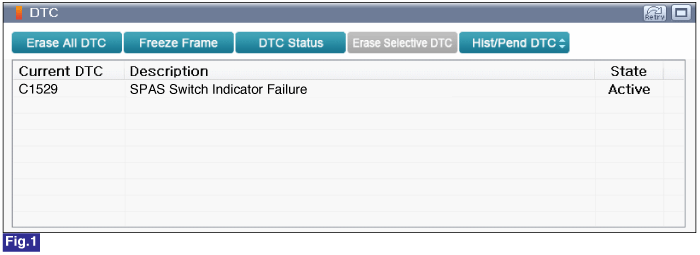

Fig.1) Diagnostic Trouble Code(DTC) is shown above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedue.

Connect GDS to Data Link Connector(DLC).

Engine "ON".

Select the "SPAS Active" parameter among "Current Data".

Check the data changes by pressing ON/OFF switch of SPAS Active.

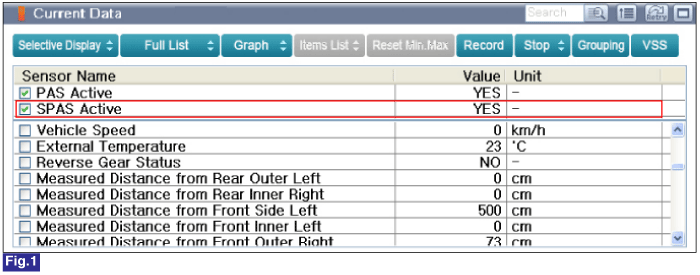

Fig.1) SPAS Active

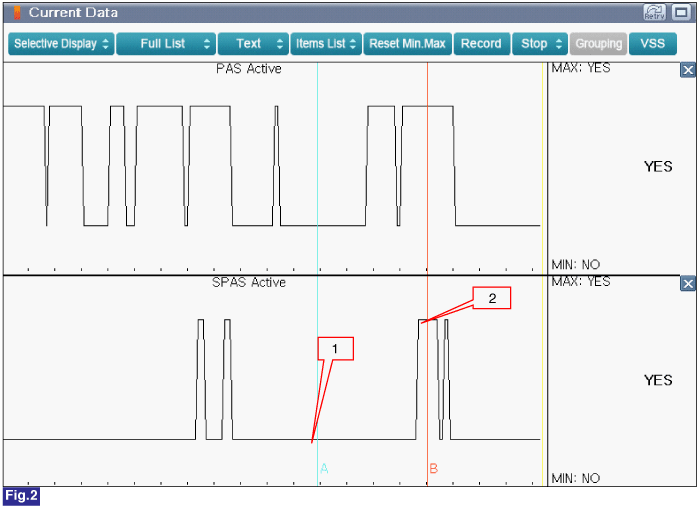

Fig.2) Sensor Data Review

① SPAS Active(ON)

② SPAS Inactive(OFF)

Is the parameter displayed within specifications?

	▶ Fault is intermittent caused by poor connection in SPAS ECU's connector or was repaired and SPAS ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
