3.
Has a problem been found?
 | ▶ Repair as necessary and then go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Power Circuit Inspection" procedure. |
Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Has a problem been found?
| ▶ Repair as necessary and then go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Power Circuit Inspection" procedure. |
Ignition switch "OFF"
Refer to "Shop Manual" and disconnect Purge Control Solenoid Valve connector.
Ignition switch "ON"
Measure the voltage between Pin No. 1 (Power) terminal of Purge Control Solenoid Valve harness connector and chassis ground.
Specification : B+
Is the measured value within specification?
| ▶ Go to "Control Circuit Inpsection" procedure. |
| ▶ Repair open or short in circuit and then go to "Verification of vehicle Repair" procedure. |
Ignition switch "OFF"
Refer to "Shop Manual" and disconnect Purge Control Solenoid Vavle connector.
Ignition switch "ON"
Measure the voltage between Pin No. 2 (Control) terminal of Purge Control Solenoid Valve harness connector and chassis ground.
Specification : Approx. 3.5V
Ignition switch "OFF"
Re-connect Purge Control Solenoid Valve connector.
Connect VMI to GDS and set up an oscilloscope as follow (2-channel);
Channel A (+) : Pin No. 2 (PCSV Output) terminal (PCSV harness connector)
Channel A (-) : Ground
Ignition switch "ON" & Engine "ON"
Testing Condition : Idle

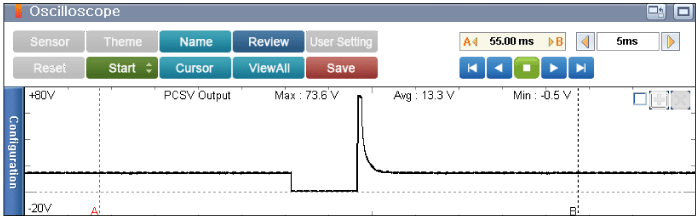

Specification : Refer to Figure Below
Is the measured value within specification?
| ▶ Go to "Component Inspection" procedure. |
| ▶ Repair open or short in circuit and then go to "Verification of vehicle Repair" procedure. |
