Signal Waveform & Data
■ EURO4 - HO2S [Bank 1/Sensor1] (Binary type)

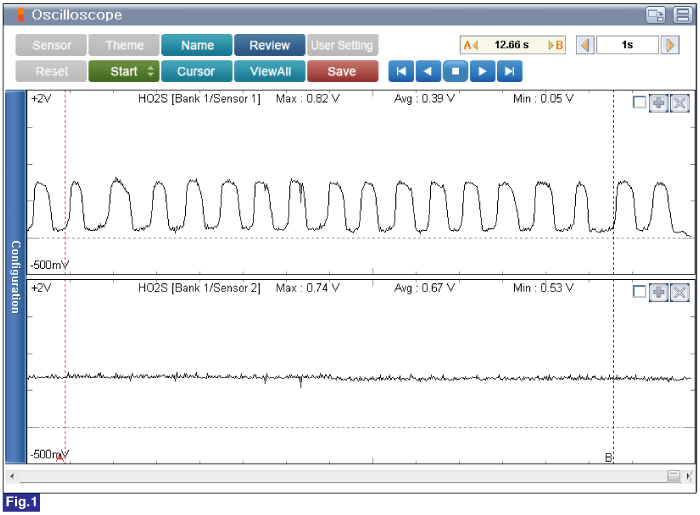

Fig.1) Approx. 2000rpm(Warm Up) - Signal waveforms of front HO2S(the upper) and rear HO2S(the lower)
