1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON"

3.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

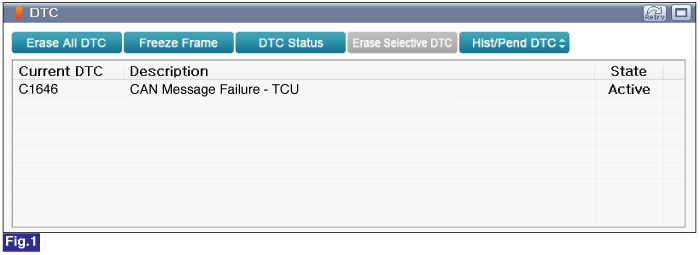

Fig.1) Diagnostic Trouble Code(DTC) is shown above

4.

Is DTC status displayed as Present?

	▶ Go to "Wiring Inspection" procedure.
	▶ Fault is intermittent caused by poor contact in the ECU's connector or was repaired and EPB ECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
