SPAS unit | Power | Ignition 1 |
Operating voltage | 9V ~ 16V | |
SPAS sensor (Front/Rear) | Number of sensors | Front : 4EA, Rear : 4EA |
Operating voltage | 7.7V ~ 8.3V | |
Rated currunt | Normal mode : 10 ± 3 mA Transmission mode : 15 ± 5 mA | |
Operation frequency | 48 ± 3KHz | |
Detecting range | 30 ~ 250cm | |
SPAS sensor (Side) | Number of sensors | Front left : 1EA, Front rigth : 1EA Rear left : 1EA, Rear rigth : 1EA |
Operating voltage | 7.7V ~ 8.3V | |
Rated currunt | Normal mode : 10 ± 3 mA Transmission mode : 15 ± 5 mA | |
Operation frequency | 51.2 ± 0.6KHz | |
Detecting range | 40 ~ 450cm | |
Speaker | Built in the instrument cluster | |

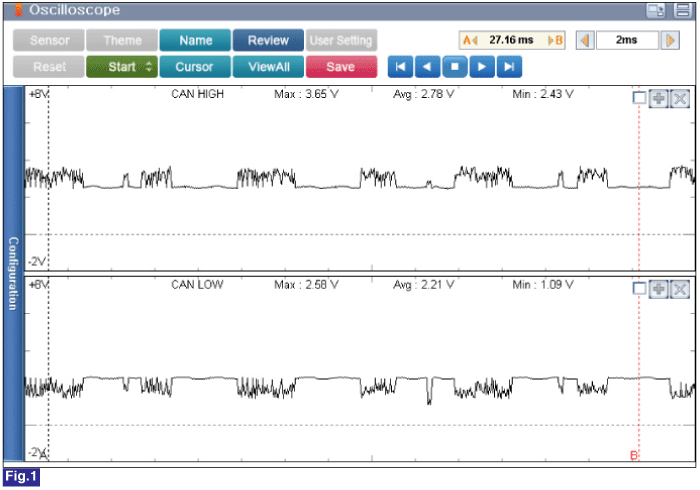

Fig.1) CAN communication waveform
