3.
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

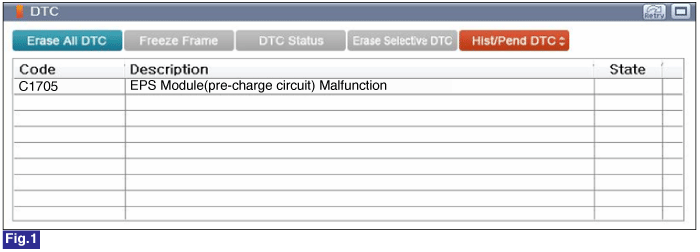

Fig.1) Diagnostic Trouble Code(DTC) is shown above
Connect GDS to Data Link Connector(DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Fig.1) Diagnostic Trouble Code(DTC) is shown above
Is DTC status displayed as Present?
 | ▶ Go to "Wiring Inspection" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition "OFF", connect GDS.
Ignition "ON" & Engine "OFF", select "Current Data" mode.
Monitor the "Battery Voltage" parameter on the GDS.
Specification : Approx. 14.5V
Fig.1) Ignition "ON" & Engine "OFF" Normal Data
Is parameter within specifications?
| ▶ This may be a intermittent problem caused by poor contact of component or the EPS ECU. ▶ Thoroughly check for looseness, poor connection, bent, corrison, contamination, deformation or damage of connector. ▶ Repair or replace as necessary and then, go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Wiring Inspection" procedure. |
