Connect GDS to DLC(Data Link Cable).

Ignition "ON" & Engine "OFF"

Select the "Vehicle S/W Management" about related DTC with GDS.

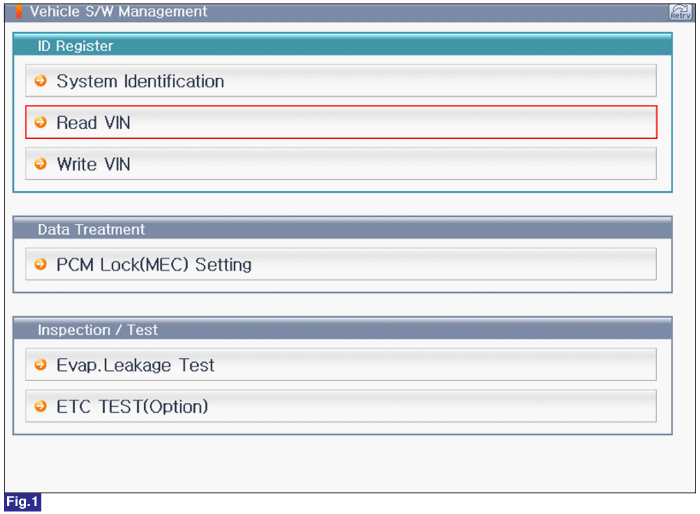

Fig.1) Select "Read VIN"

Fig.2) Press "OK" button(IG ON, ENG OFF).

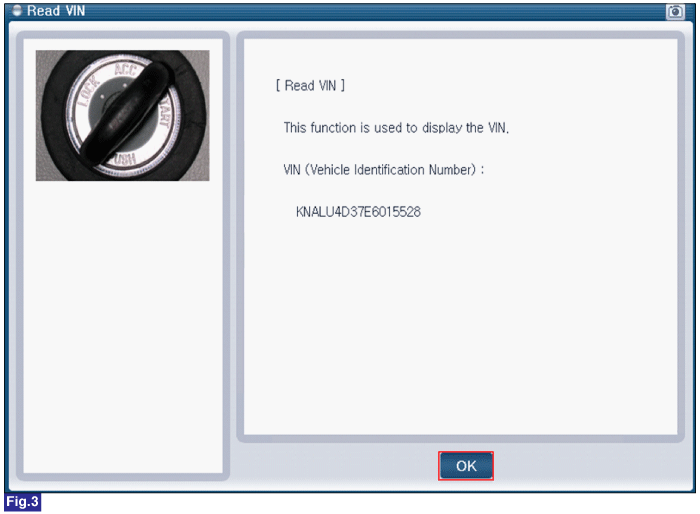

Fig.3) Check the VIN Number(Completed)

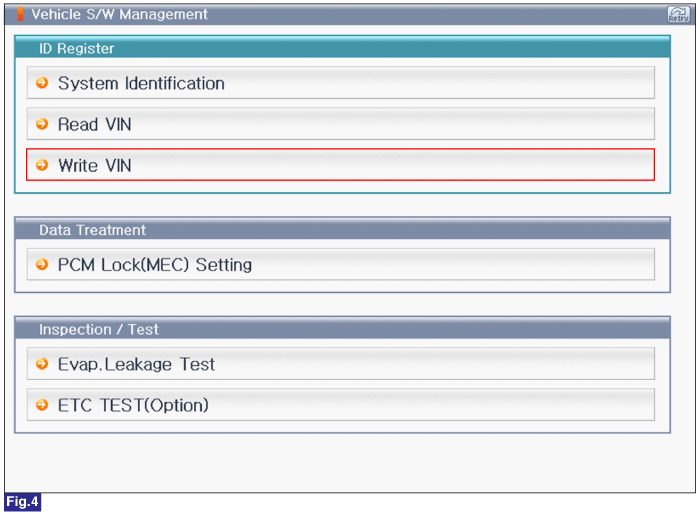

Fig.4) Select "Write VIN"

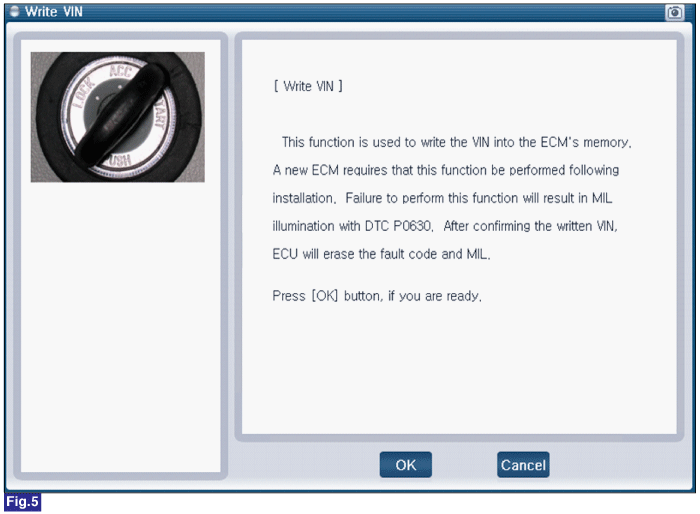

Fig.5) Press "OK" button(IG ON, ENG OFF).

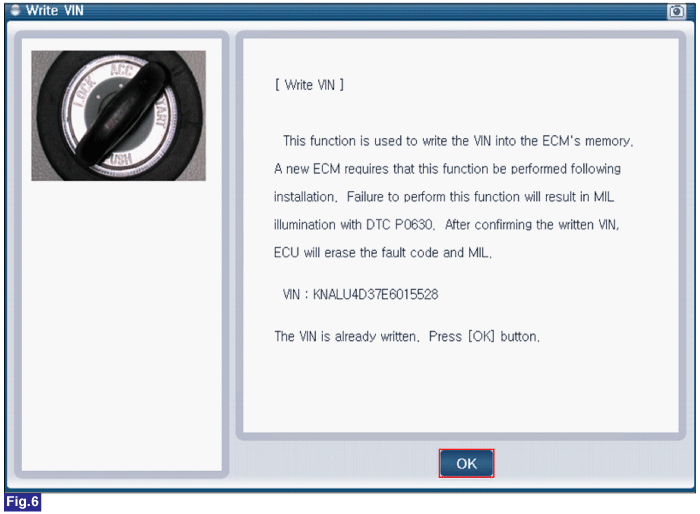

Fig.6) Check the VIN Number(Completed)

When the "Read VIN, Write VIN" has been finished perfectly, press "OK" button and go to "Verification of Vehicle Repair" procedure.
