1.
Check operation of MIL
(1)
Connect GDS to Data Link Connector(DLC).
(2)
IG KEY "ON" & ENG "ON".
(3)
Perform "Actuation Test" for MIL.

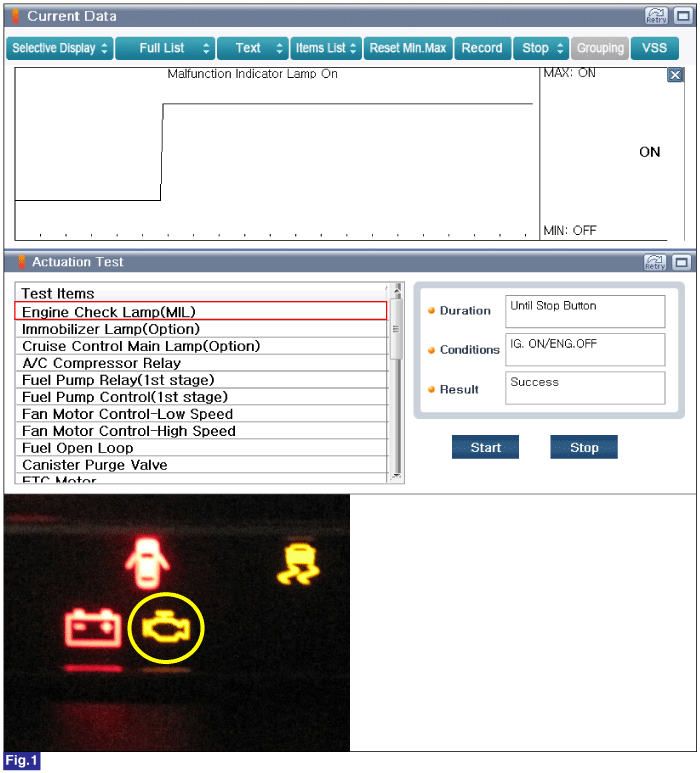

Fig.1) MIL actuation test
(4)
Has a problem been found?
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If no problems were found with the circuits or connectors, replace the Cluster and go to "Verification of Vehicle Repair" procedure. |
 | ▶ Fault is intermittent caused by poor contact in the sensor’s and/or ECM/PCM’s connector or was repaired and ECM/PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure. |
