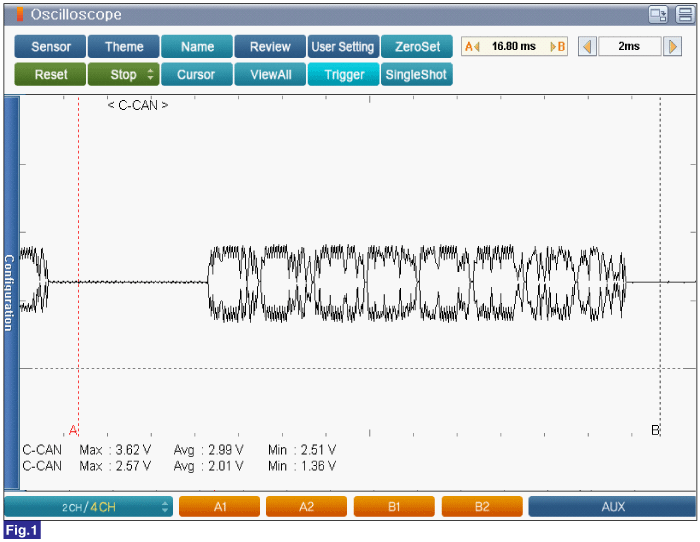

Fig.1) Normal Waveform with ignition ON.

Monitoring CAN HIGH and LOW simultaneously is important in monitoring CAN communication waveform. When CAN HIGH signal rise to 3.5V and LOW signal drops to 1.5V - voltage difference between HIGH and LOW signal is 2V

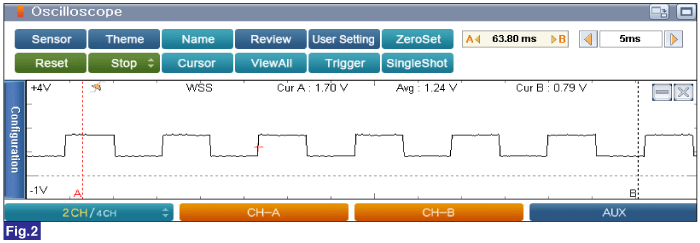

Fig.2) ENG On / Shift lever "D"(Front Wheel Speed Sensor)
