3.
ENG On / Shift lever "D"(Front Wheel Speed Sensor)
Specification :
V_low : 0.59V ~ 0.84V
V_high : 1.18V ~ 1.80V
IG KEY "OFF".

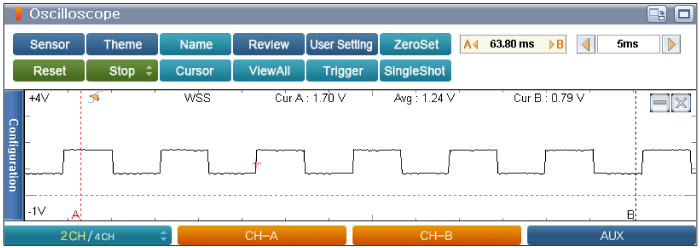

Connect CHA probe to WSS signal terminal(Pin No.2) of WSS connector.
ENG On / Shift lever "D"(Front Wheel Speed Sensor)
Specification :
V_low : 0.59V ~ 0.84V
V_high : 1.18V ~ 1.80V
Is the measured signal waveform O.K?
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If no problems were found with the circuits or connectors, replace the WSS and go to "Verification of Vehicle Repair" procedure. |
