Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

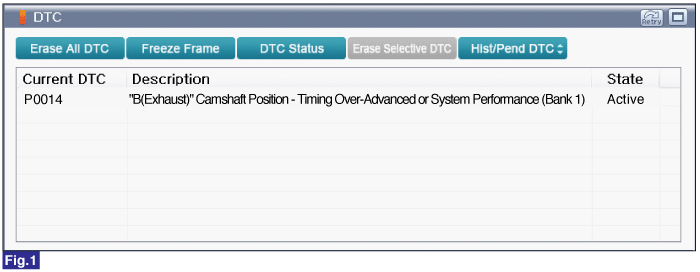

Fig.1) Diagnostic Trouble Code(DTC) is shown above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

Connect GDS to DLC(Data Link Cable).

Warm up the engine to normal operating temperature.

Check the "Current Data" about related DTC with GDS.

Fig.1) Engine Idle after Warm Up & Approx. 2400rpm

If the parameter is not similar with shown data, measure related waveforms with GDS.

Fig.2) Normal Waveforms of OCV-in & CKPS, CMPS(IN, EX) at Engine idle.

A: CKPS & CMPS(Exhaust side) syncronization - There are about 15~16 teeth between the CKPS missing tooth and CMPS signal.

Are the parameters displayed correctly?

	▶ Fault is intermittent caused by poor contact in the sensor’s and/or PCM’s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of vehicle Repair" procedure.
	▶ Go to "Wiring Inspection" procedure.
