Item
Specification
OCV#1 Resistance(Ω)
Approx. 10Ω [30 °C/ 86 °F]

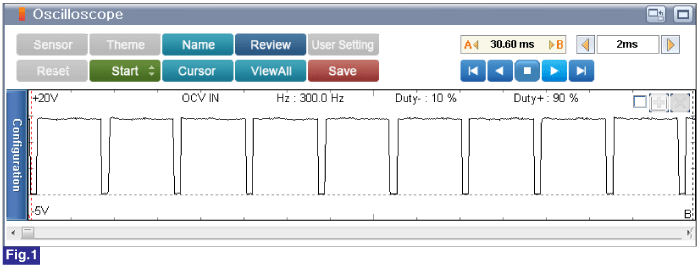

Fig.1) Normal Waveforms of OCV(IN) at Engine idle.
Duty(-) of OCV is approximately 10% on engine idle. Duty(-) value increase in proportion to engine load.
