3.

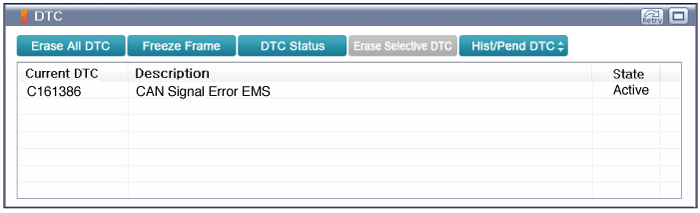

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition switch "OFF"
Connect GDS to Data Link Connector (DLC).
Ignition switch "ON" & Engine "ON"
Select "Engine" system
Monitor engine status parameters in "Current Data" with GDS.
Specification : Engine status parameter value changes in according to actual engine speed.

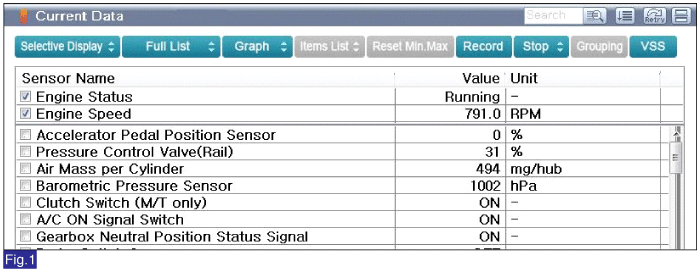

Fig.1) Engine status and speed parameter in Engine system.
Is the parameter displayed within specification?
| ▶ Go to "Wiring Inspection" procedure. |
| ▶ Check for fault in engine system. ▶ If fault is present in engine system, perform applicable troubleshooting steps. ▶ Carefully re-do this troubleshooting guide steps. |
