Connect GDS to Data Link Connector(DLC).
Engine "ON".
Monitor the "INPUT SPEED SENSOR 2" parameter on the "Current Data" with GDS.
Move selector lever from "P" range to "D" range. And Driving at 1st gear to 6th gear.
■ Specification : Increase or decrease as driving condition.

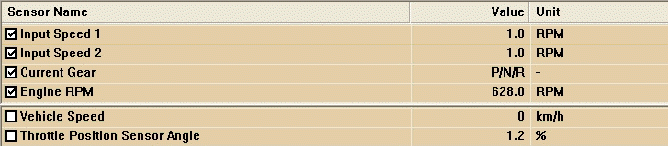

FIG1)"P" & "D" range.

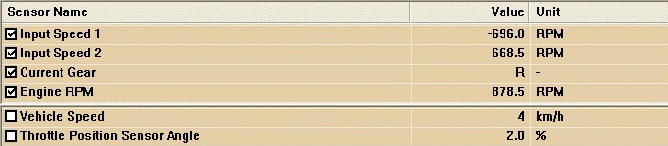

FIG2)"R" range.

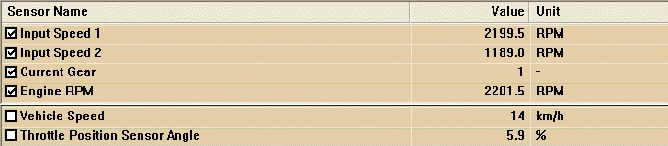

FIG3) 1st gear
FIG4) 2nd gear

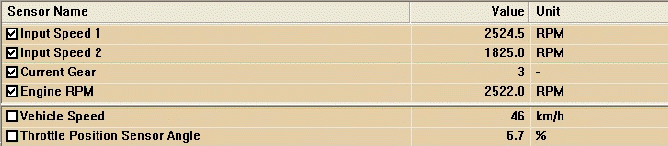

FIG5) 3rd gear

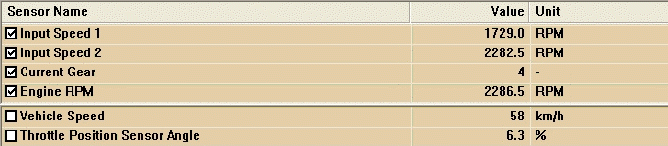

FIG6) 4th gear

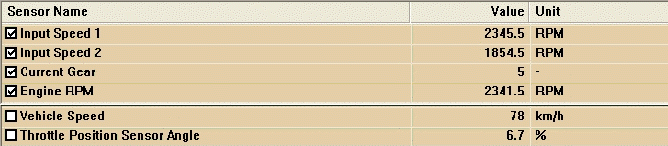

FIG7) 5th gear

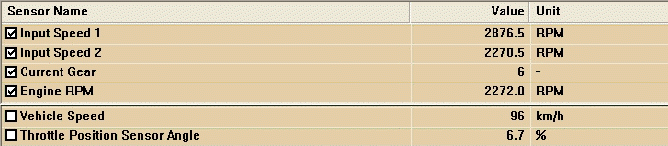

FIG8) 6th gear
Does "input speed sensor2" follow the referance data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or TCM's connector or was repaired and TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure. |
 | ▶Go to "W/Harness Inspection" procedure. |
