Connect GDS to Data Link Connector(DLC).
Engine "ON".
Monitor the "Clutch Motor Ampere" parameter on the "Current Data" with GDS.
Move selector lever from "P" range to "D" range. And Driving at 1st gear to 6th gear.
■ Specification : Increase or decrease as driving condition.

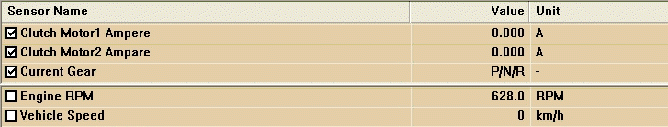

FIG1)"P" & "D" range.
FIG2)"R" range.
FIG3) 1st gear

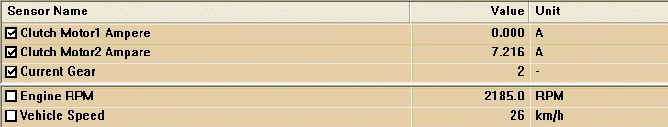

FIG4) 2nd gear

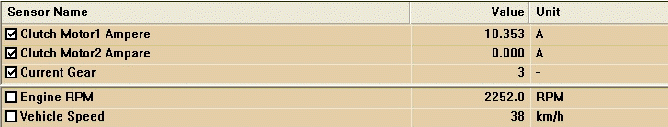

FIG5) 3rd gear

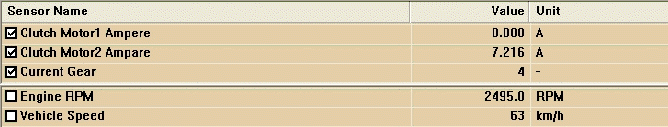

FIG6) 4th gear

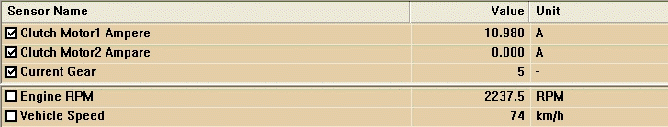

FIG7) 5th gear
FIG8) 6th gear
Does "Clutch Motor Ampere" follow the referance data?
 | ▶ Fault is intermittent caused by poor contact in the sensor's and/or TCM's connector or was repaired and TCM memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure. |
 | ▶Go to "W/Harness Inspection" procedure. |
