5.
Monitor "Shift Control Solenoid Valve(UD/B)" and "Shift Control Solenoid Valve(35R/C)" in "Current Data" with GDS.
Specification : Refer to Figure below
Ignition "OFF".
Connect GDS to Data Link Connector(DLC).
Ignition "ON".

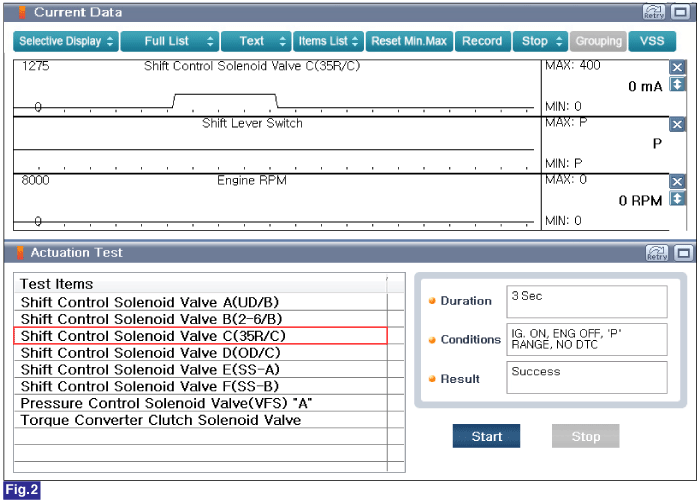

Perform "Shift Control Solenoid Valve(UD/B)" and "Shift Control Solenoid Valve(35R/C)" in "Actuation Test" with GDS.
Monitor "Shift Control Solenoid Valve(UD/B)" and "Shift Control Solenoid Valve(35R/C)" in "Current Data" with GDS.
Specification : Refer to Figure below
Is displayed parameter within specification?
 | ▶ Refer to "Shop Manual" and repair or replace A/T as necessary. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, repair or replace Shift Solenoid circuit or Shift Solenoid Valves and then go to "Verification of Vechicle Repair" procedure. |
