4.
Measure resistance between Pin No. 21 (Power) terminal and Pin No. 54 (Signal) terminal of PCM harness connector.
Specification : Approx. 0.88 MΩ

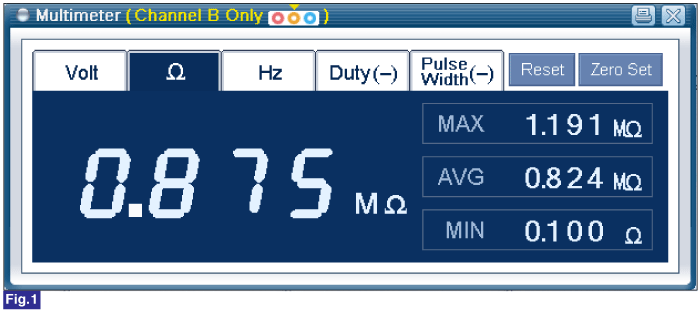

Fig.1) Actual Vehicle Test Data of Output Speed Sensor Resistance.
Ignition "OFF".
Disconnect Battery (-) terminal.
Refer to "Shop Manual" and disconnect PCM connector.
Measure resistance between Pin No. 21 (Power) terminal and Pin No. 54 (Signal) terminal of PCM harness connector.
Specification : Approx. 0.88 MΩ
Fig.1) Actual Vehicle Test Data of Output Speed Sensor Resistance.
Is measured value within specification?
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace PCM and then go to "Verification of Vechicle Repair" procedure. |
 | ▶ Carefully re-do this troubleshooting guide steps. ▶ If problem still occurs, replace Output Speed Sensor and then go to "Verification of Vechicle Repair" procedure. |
