Connect GDS to Data Link Connector(DLC).

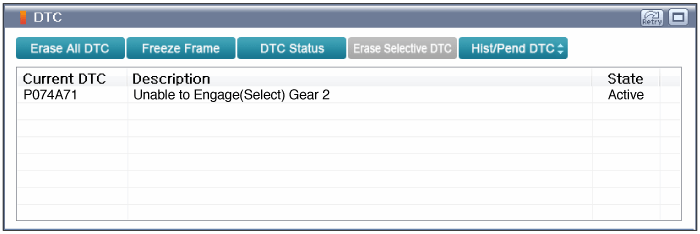

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

Connect GDS to Data Link Connector(DLC).

Refer to "Shop Manual" and lift vehicle with suitable lift.

Operate vehicle or system in accordance with Enable Condition in DTC Detecting Condition.

Monitor selected parameters shown below in "Current Data" with GDS.

Specification : Refer to Figure below

Fig.1) When 2 gear is disengaged

Is displayed parameter within specification?

▶ Repeat "Monitor GDS Data" procedure few times and make sure every test result is very smilar.

▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

▶ Go to "Component Inspection" procedure.
