Monitor DTC Status
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON"

3.

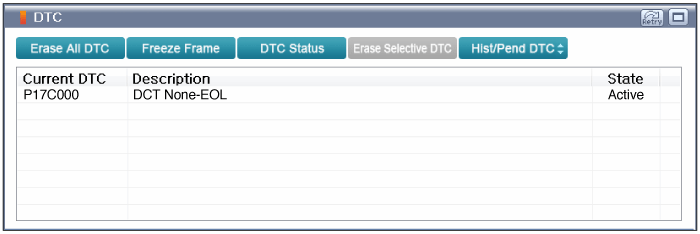

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

4.

Is DTC status displayed as Present?

▶ Go to "Monitor GDS Data" procedure.

▶ Go to "Verification of Vehicle Repair" procedure.

Monitor GDS Data
1.

Turn Ignition "OFF" and then "ON"

2.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

3.

Clear all DTCs in the system with GDS.

4.

Re-check DTC in the system with GDS.

5.

Repeat above procedure few times.

6.

Are any DTCs stored in the system?

▶ Carefully re-do this troubleshooting guide steps.

▶ If problem still occurs, replace TCM and then go to "Verification of Vechicle Repair" procedure.

▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Vehicle S/W Management
caution

In case of replacing TCM or Clutch pack perform following procedures;

1.

Ignition switch "OFF"

2.

Connect GDS to Data Link Connector (DLC).

3.

Ignition switch "ON"& Engine "OFF"

4.

Select the "Vehicle S/W Management" about related DTC with GDS.

Fig.1) Vehicle S/W Management

Fig.2~5) DCT Learning Function - Step 1~5

Fig.6) DCT Learning Function Completed
