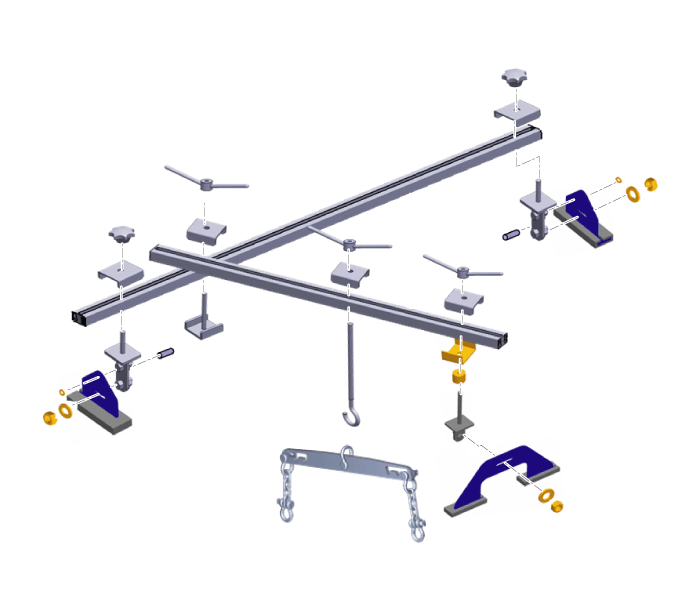

Engine support fixture (bar)

09200-3N000

Used for holding engine assembly when removing / installing transmission

Used with the supporter (09200-2S000) adapter (09200-4X000)

Engine support fixture (supporter)

A: 09200-2S000

B: 09200-2S100

C: 09200-2S200

Used for holding engine assembly when removing / installing transmission

Used with the bar (09200-3N000) and adapter (09200-4X000)

Engine support fixture (adapter)

09200-4X000

Used for holding engine assembly when removing / installing transmission

Used with the bar (09200-3N000) and supporter (09200-2S000)

Oil seal installer

A: 09430-C1190 (Installer)

B: 09231-H1100 (Handle)

Used for installing differential oil seal

Inhibitor switch guide pin

09480-A3800

Used for fixing "N" range when installing inhibitor switch

Dual clutch remover

09430-C1180

Used for removing dual clutch assembly

Dual clutch installer

09430-2A240

Used for installing dual clutch assembly

Clutch actuator remover

09430-A5100

Used for removing clutch actuator assembly

Clutch actuator adjuster

09430-C1300

Used for adjusting clutch actuator

Used with the clutch actuator adjustment jig (09430-C1302)

Clutch actuator adjustment jig

09430-C1302

Used for adjusting clutch actuator

Used with the clutch actuator adjuster (09430-C1300)
