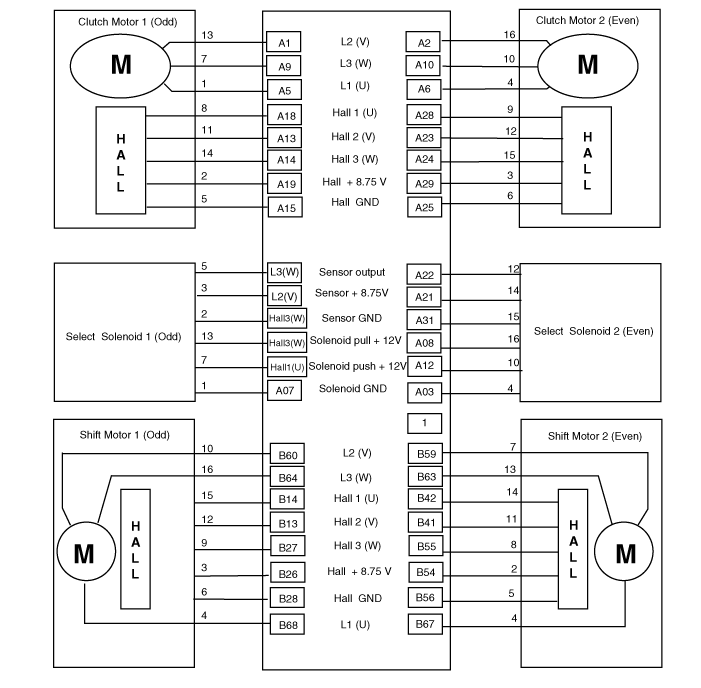

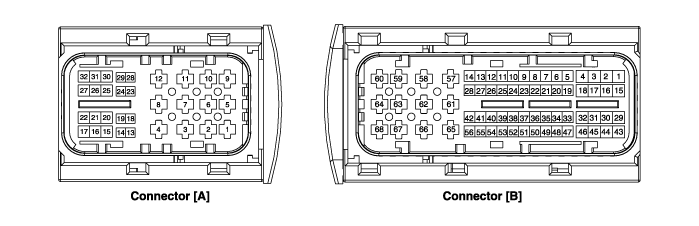

Pin | Description | Pin | Description |
1 | Clutch actuator (Clutch motor 1 (Odd)_Phase V) | 15 | Clutch actuator (Clutch motor 1 (Odd)_Sensor ground) |
2 | Clutch actuator (Clutch motor 2 (Even)_Phase V) | 18 | Clutch actuator (Clutch motor 1 (Odd)_Hall 1) |
3 | Select actuator (Select solenoid 2 (Even)_Sensor ground) | 19 | Clutch actuator (Clutch motor 1 (Odd)_Supply) |
4 | Select actuator (Select solenoid 1 (Odd)_Push) | 20 | Select actuator (Select solenoid 1 (Odd)_Sensor supply) |
5 | Clutch actuator (Clutch motor 1 (Odd)_Phase U) | 21 | Select actuator (Select solenoid 2 (Even)_Sensor supply) |
6 | Clutch actuator (Clutch motor 2 (Even)_Phase U) | 22 | Select actuator (Select solenoid 2 (Even)_Sensor ouput) |
7 | Select actuator (Select solenoid 1 (Odd)_Sensor ground) | 23 | Clutch actuator (Clutch motor 2 (Even)_Hall 2) |
8 | Select actuator (Select solenoid 2 (Even)_ Pull) | 24 | Clutch actuator (Clutch motor 2 (Even)_Hall 3) |
9 | Clutch actuator (Clutch motor1 (Odd)_Phase W) | 25 | Clutch actuator (Clutch motor 2 (Even)_Sensor ground) |
10 | Clutch actuator (Clutch motor 2 (Even)_Phase W) | 26 | Select actuator (Select solenoid 1 (Odd)_Sensor output) |
11 | Select actuator (Shifts olenoid 1 (Odd)_Pull) | 28 | Clutch actuator (Clutch motor 2 (Even)_Hall 1) |
12 | Select actuator (Shift solenoid 2 (Even)_Push) | 29 | Clutch actuator (Clutch motor 2 (Even)_Sensor supply) |
13 | Clutch actuator (Clutch motor 1 (Odd)_Hall 2) | 30 | Select actuator (Select solenoid 1 (Odd)_Sensor ground) |
14 | Clutch actuator (Clutch motor (Odd)_Hall 3) | 31 | Select actuator (Select solenoid 2 (Even)_Sensor ground) |
Pin | Description | Pin | Description |

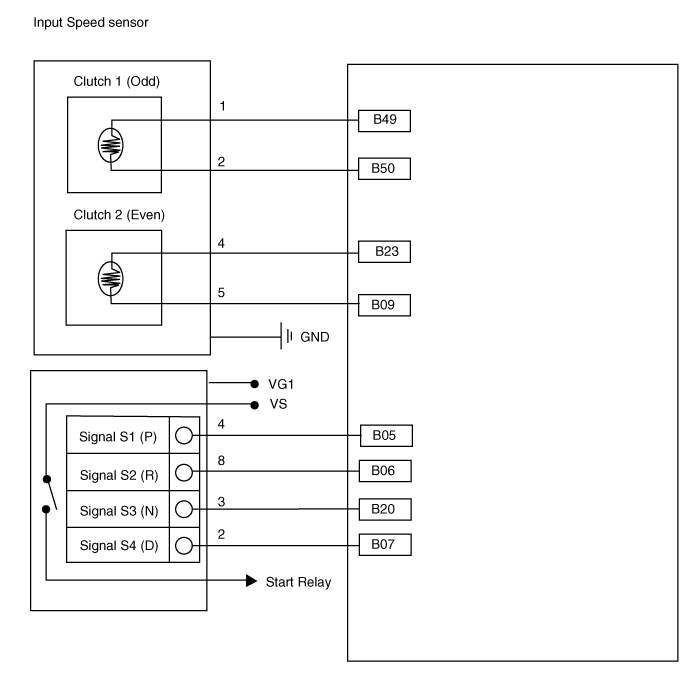

3 | ON / START input | 42 | Shift actuator (Shift motor 2 (Even) _Hall 3) |
5 | Inhibitor switch "P" input signal | 43 | Inhibitor switch "M" Input signal |
6 | Inhibitor switch "R" input signal | 44 | CAN1 communication port1 High |
7 | Inhibitor switch "D" input signal | 45 | CAN1 communication port1 low |
8 | Manual mode "Down" switch | 48 | Flex ray high (BP) |
9 | Input speed sensor signal 2 (Even) | 49 | Input speed supply 1 (Odd) |
13 | Shift actuator (Shift motor 1 (Odd) _Hall 2) | 50 | Input speed signal 1 (Odd) |
14 | Shift actuator (Shift motor 1 (Odd) _Hall 3) | 54 | Shift actuator (Shift motor 2 (Even) _Sensor supply) |
17 | Battery power low VBD | 55 | Shift actuator (Shift motor 2 (Even) _Hall 1) |
19 | Manual mode "Select" switch | 56 | Shift actuator (Shift motor 2 (Even) _Sensor ground) |
20 | Inhibitor switch "N" input signal | 57 | Power ground 1 for high current modules |
21 | Manual mode "Up" switch | 58 | Power ground 2 for high current modules |
23 | Input speed supply 2 (Even) | 59 | Shift actuator (Shift motor 2 (Even)_Phase W) |
24 | 5V spare supply output | 60 | Shift actuator (Shift motor 1 (Odd)_Phase W) |
26 | Shift actuator (Shift motor 1 (Odd)_Sensor supply) | 61 | Power ground 3 for high current modules |
27 | Shift actuator (Shift motor 1 (Odd)_Hall 1) | 63 | Shift Actuator (Shift motor 2 (Even)_Phase V) |
28 | Shift actuator (Shift motor 1 (Odd)_Sensor ground) | 64 | Shift Actuator (Shift Motor 1 (Odd)_Phase V) |
30 | CAN2 communication port2 High | 65 | Motor supply voltage 1 from direct battery |
31 | CAN2 communication port2 Low | 66 | Motor supply voltage 2 from direct battery |
34 | Flex ray bus, BM | 67 | Shift actuator (Shift motor 2 (Even)_Phase U) |
41 | Shift actuator (Shift motor 2 (Even) _Hall 2) | 68 | Shift actuator (Shift motor 1 (Odd)_Phase U) |
Pin | Description | Condition | Input / output value | |
Type | Level | |||
1 | Clutch actuator (Clutch motor 1 (Odd)_Phase V) | Low | Output | 0V |
PWM | 0V ~ Battery voltage | |||
2 | Clutch actuator (Clutch motor 2 (Even)_Phase V) | Low | Output | 0V |
PWM | 0V ~ Battery voltage | |||
3 | Select actuator (Select solenoid 2 (Even)_Sensor ground) | Static on | Output | 0V |
4 | Select actuator (Select solenoid 1 (Odd)_Push) | On | Output | Battery voltage |
Off | 0V | |||
5 | Clutch actuator (Clutch motor 1 (Odd)_Phase U) | Low | Output | 0V |
PWM | 0V ~ Battery voltage | |||
6 | Clutch actuator (Clutch motor 2 (Even)_Phase U) | Low | Output | 0V |
PWM | 0V ~ Battery voltage | |||
7 | Select actuator (Select solenoid 1 (Odd)_Sensor ground) | Static on | Output | 0V |
8 | Select actuator (Select solenoid 2 (Even)_ Pull) | On | Output | Battery voltage |
Off | 0V | |||
9 | Clutch actuator (Clutch motor1 (Odd)_Phase W) | Low | Output | 0V |
PWM | 0V ~ Battery voltage | |||
10 | Clutch actuator (Clutch motor 2 (Even)_Phase W) | Low | Output | 0V |
PWM | 0V ~ Battery voltage | |||
11 | Select actuator (Select solenoid 1 (Odd)_Pull) | On | Output | Battery voltage |
Off | 0V | |||
12 | Select actuator (Select solenoid 2 (Even)_Push) | On | Output | Battery voltage |
Off | 0V | |||
13 | Clutch actuator (Clutch motor 1 (Odd)_Hall 2) | High | Input | 4.5V |
Low | 0V | |||
14 | Clutch actuator (Clutch motor (Odd)_Hall 3) | High | Input | 4.5V |
Low | 0V | |||
15 | Clutch actuator (Clutch motor 1 (Odd)_Sensor ground) | Ground | Ground | 0V |
18 | Clutch actuator (Clutch motor 1 (Odd)_Hall 1) | High | Input | 4.5V |
Low | 0V | |||
19 | Clutch actuator (Clutch motor 1 (Odd)_Sensor supply) | - | Power | 8.75V |
20 | Select actuator (Select solenoid 1 (Odd)_Sensor supply) | - | Power | 8.75V |
21 | Select actuator (Select solenoid 2 (Even)_Sensor Supply) | - | Power | 8.75V |
22 | Select actuator (Select solenoid 2 (Even)_Sensor ouput) | High | Input | 4V |
Low | 1V | |||
23 | Clutch actuator (Clutch motor 2 (Even)_Hall 2) | High | Input | 4.5V |
Low | 0V | |||
24 | Clutch actuator (Clutch motor 2 (Even)_Hall 3) | High | Input | 4.5V |
Low | 0V | |||
25 | Clutch actuator (Clutch motor 2 (Even)_Sensor ground) | Ground | Ground | 0V |
26 | Select actuator (Select solenoid 1 (Odd)_Sensor output) | High | Input | 4V |
Low | 1V | |||
28 | Clutch actuator (Clutch motor 2 (Even)_Hall 1) | High | Input | 4.5V |
Low | 0V | |||
29 | Clutch actuator (Clutch motor 2 (Even)_Supply) | - | Power | 8.75V |
30 | Select actuator (Select solenoid 1 (Odd)_Sensor ground) | Ground | Ground | 0V |
31 | Select actuator (Select solenoid 2 (Even)_Sensor ground) | Ground | Ground | 0V |
Pin | Description | Condition | Input / output value | |
Type | Level | |||
3 | ON / START input | - | Power | 9V < Battery voltage < 16V |
5 | Inhibitor switch "P" input signal | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
6 | Inhibitor switch "R" input signal | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
7 | Inhibitor switch "D" input signal | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
8 | Manual mode "Down" switch | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
9 | Input speed sensor signal 2 (Even) | High | Input | 0.448V |
Low | 0.224V | |||
13 | Shift actuator (Shift motor 1 (Odd) _Hall 2) | High | Input | 4.5V |
Low | 0.8 | |||
14 | Shift actuator (Shift motor 1 (Odd) _Hall 3) | High | Input | 4.5V |
Low | 0.8 | |||
17 | Battery power low VBD | - | Power | 9V < Battery voltage < 16V |
18 | Paddle shift down signal | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
19 | Shift lever select switch | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
20 | Inhibitor switch "N" input signal | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
21 | Manual mode "Up" switch | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
23 | Input speed supply 2 (Even) | - | Power | 8.75V |
24 | 5V spare supply output | - | Power | 5V |
26 | Shift actuator (Shift motor 1 (Odd)_Sensor supply |
| Power | 8.75V |
27 | Shift actuator (Shift motor 1 (Odd)_Hall 1) | High | Input | 4.5V |
Low | ||||
0.8V | ||||
28 | Shift actuator (Shift Motor 1 (Odd)_Sensor Ground) | Ground | Ground | 0V |
30 | CAN2 communication port2 High | Rec./Dom | CAN Line | Recessive : 2.5V |
Dominant : 3.5V | ||||
31 | CAN2 communication port2 Low | Rec./Dom | CAN Line | Recessive : 2.5V |
Dominant : 1.5V | ||||
34 | Flex ray bus, BM | Idle | CAN Line | Idle : 2.5V |
Differential | Differential : 2.0 V / 3.0 V | |||
41 | Shift actuator (Shift motor 2 (Even) _Hall 2) | High | Input | 4.5V |
Low | 0.8V | |||
42 | Shift actuator (Shift motor 2 (Even) _Hall 3) | High | Input | 4.5V |
Low | 0.8V | |||
43 | Inhibitor switch "M" input signal | High | Input | 9V < Battery voltage < 16V |
Low | 0V | |||
44 | CAN1 communication port1 High | Idle | CAN Line |
|
Differential |
| |||
45 | CAN1 communication port1 Low | Idle/Diff. | Rec./Dom | Recessive : 2.5V |
Dominant : 3.5V | ||||
48 | Flex ray High (BP) | Idle/Diff. | CAN Line | Idle : 2.5V |
Differenital : 2.0V / 3.0V | ||||
49 | Input speed supply 1 (Odd) | - | Power | 8.75V |
| ||||
50 | Input speed signal 1 (Odd) | High | Input | 0.448V |
Low | 0.224V | |||
54 | Shift actuator (Shift motor 2 (Even) _Sensor supply) | - | Power | 8.75V |
55 | Shift actuator (Shift motor 2 (Even) _Hall 1) | High | Input | 4.5V |
Low | 0.8V | |||
56 | Shift actuator (Shift motor 2 (Even) _Sensor ground) | Ground | Ground | 0V |
57 | Power ground 1 for high current modules | Ground | Ground | 0V |
58 | Power ground 2 for high current modules | Ground | Ground | 0V |
59 | Shift actuator (Shift motor 2 (Even)_Phase W) | Low | Output | 0V |
PWM | 0V~Battery voltage | |||
60 | Shift actuator (Shift motor 1 (Odd)_Phase W) | Low | Output | 0V |
PWM | 0V~Battery voltage | |||
61 | Power ground 3 for high current modules | Ground | Ground | Ground |
63 | Shift actuator (Shift motor 2 (Even)_Phase V) | Low | Output | 0V |
PWM | 0V~Battery voltage | |||
64 | Shift actuator (Shift motor 1 (Odd)_Phase V) | Low | Output | 0V |
PWM | 0V~Battery voltage | |||
65 | Motor supply voltage 1 from direct battery | - | Power | 9V < Battery voltage < 16V |
66 | Motor supply voltage 2 from direct battery | - | Power | 9V < Battery voltage < 16V |
67 | Shift actuator (Shift motor 2 (Even)_Phase U) | Low | Output | 0V |
PWM | 0V~Battery voltage | |||
68 | Shift actuator (Shift motor 1 (Odd)_Phase U) | Low | Output | 0V |
PWM | 0V~Battery voltage | |||
