Description

The Dual Clutch Transmission (DCT) control system measures data required for identifying the state of control target and computes the appropriate compensation value if adjustment is necessary.

The actuator is controlled according to the computed compensation value to obtain desired output.

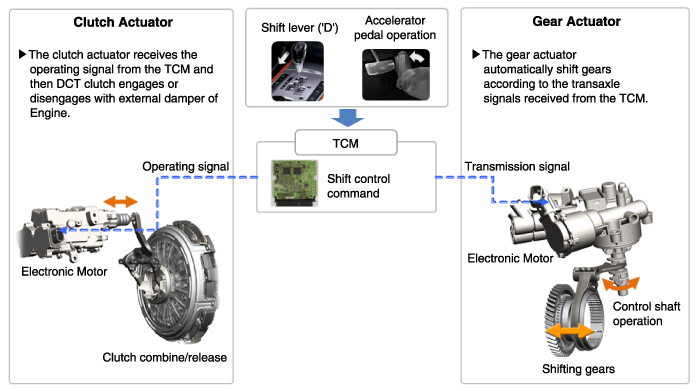

Operating principle

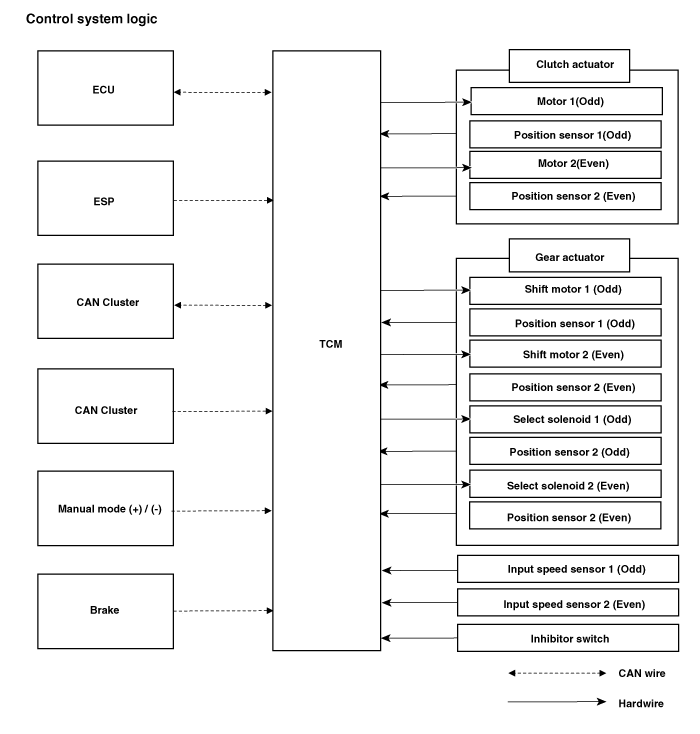

Control system logic
