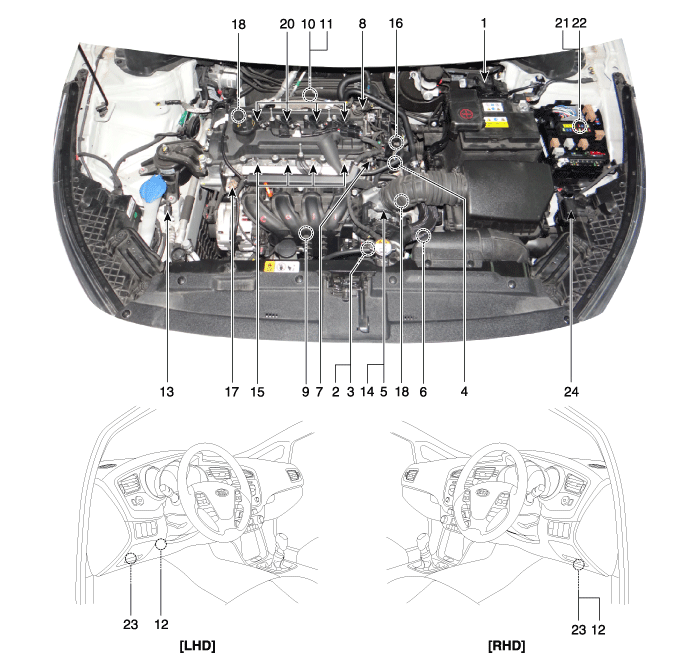

1. ECM (Engine Control Module)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5 . Throttle Position Sensor (TPS) [Integrated into ETC Module]
14. ETC Motor [Integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]
11 . Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
12. Accelerator Position Sensor (APS)
13. A/C Pressure Transducer (APT)
15. Injector
20 . Ignition Coil
16. Purge Control Solenoid Valve (PCSV)
17. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
18. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
19. Variable Intake Solenoid (VIS) Valve
21. Main Relay [EMS Box]
22. Fuel Pump Relay [EMS Box]
23. Data Link Connector (DLC) [16 Pin]
24. Multi-Purpose Check Connector (MPCC) [20 Pin]
