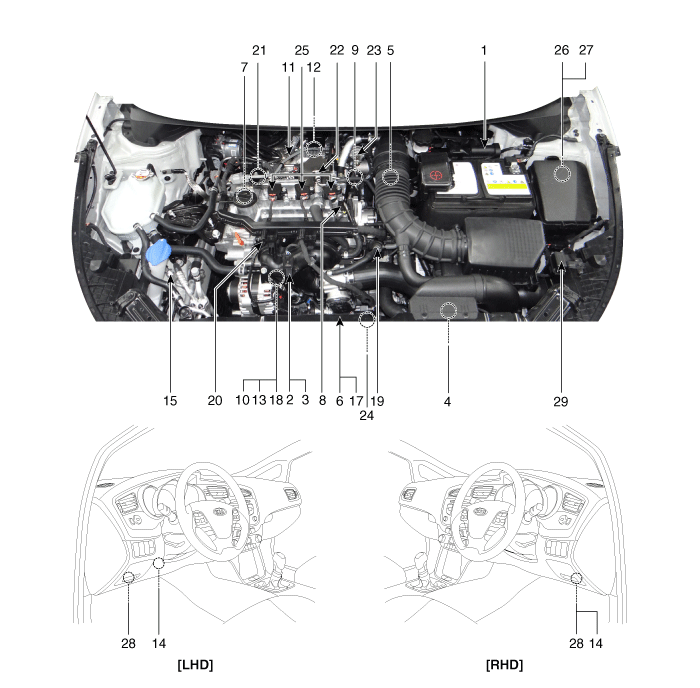

1.Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Boost Pressure Sensor (BPS)
5. Engine Coolant Temperature Sensor (ECTS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
17. ETC Motor [integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Knock Sensor (KS)
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
13. Rail Pressure Sensor (RPS)
18. Injector
14. Accelerator Position Sensor (APS)
15. A/C Pressure Transducer (APT)
16. Ambient Temperature Sensor (ATS)
19. Purge Control Solenoid Valve (PCSV)
20. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
21. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
22. Fuel Pressure Control Valve (FPCV)
23. Electric Waste Gate Actuator (EWGA)
24. RCV Control Solenoid Valve
25. Ignition Coil
26. Main Relay [EMS Box]
27. Fuel Pump Relay [EMS Box]
28. Data Link Connector (DLC) [16-Pin]
29. Multi-Purpose Check Connector (MPCC) [20 Pin]
