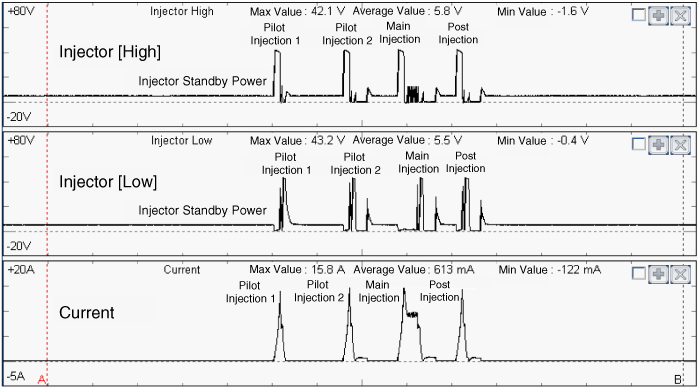

Injector | Injection | Specification | |
Voltage (V) | Current (A) | ||
Injector [High] | Pilot injection 1 | Max. 42 | Max. 16 |
Pilot injection 1 | Max. 42 | Max. 16 | |
Main injection | Max. 42 | Max. 16 | |
Post injection | Max. 42 | Max. 14 | |
Injector [Low] | Pilot injection 1 | Max. 43 | Max. 16 |
Pilot injection 2 | Max. 43 | Max. 16 | |
Main injection | Max. 43 | Max. 16 | |
Post injection | Max. 43 | Max. 14 | |

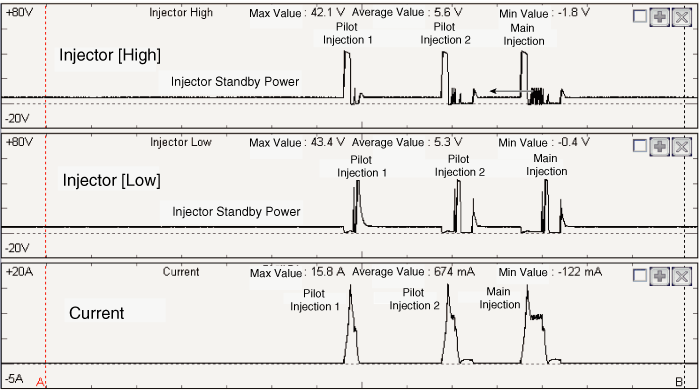

Injector | Injection | Specification | |
Voltage (V) | Current (A) | ||
Injector [High] | Pilot injection 1 | Max. 42 | Max. 16 |
Pilot injection 2 | Max. 42 | Max. 16 | |
Main injection | Max. 42 | Max. 16 | |
Injector [Low] | Pilot injection 1 | Max. 43 | Max. 16 |
Pilot injection 2 | Max. 43 | Max. 16 | |
Main injection | Max. 43 | Max. 16 | |
