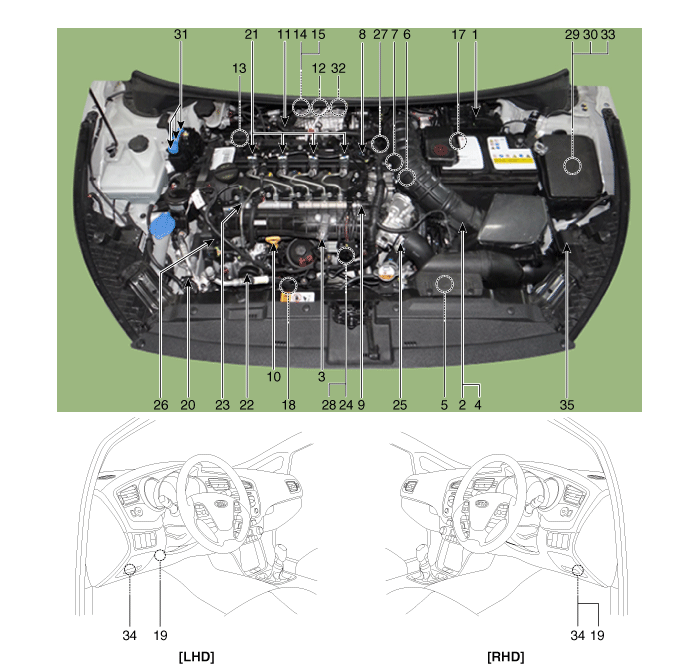

1. ECM (Engine Control Module)
2. Mass Air Flow Sensor (MAFS)
3. Intake Air Temperature Sensor (IATS) #1 built in MAFS
3. Boost Pressure Sensor (BPS)
5. Intake Air Temperature Sensor (IATS) #2
6. Engine Coolant Temperature Sensor (ECTS)
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS)
9. Rail Pressure Sensor (RPS)
10. Fuel Temperature Sensor (FTS)
11. Lambda Sensor #1
12. Lambda Sensor #2
13. Differential Pressure Sensor (DPS)
14. Exhaust Gas Temperature Sensor (EGTS) #1 (T4)
15. Exhaust Gas Temperature Sensor (EGTS) #2 (T5)
16. PM Sensor
17. Water Sensor (included in Fuel Filter)
18. Oil Temperature Sensor (OTS) & Oil Pressure Sensor (OPS)
19. Accelerator Pedal Position Sensor (APS)
20. A/C Pressure Transducer (APT)
21. Injector
22. Fuel Pressure Control Valve (FPCV)
23. Rail Pressure Regulator Valve (RPRV)
24. WGT Control Solenoid Valve
25. Air Control Valve (ACV)
26. Variable Swirl Actuator (VSA)
27. Electric EGR Control Valve
28. EGR Cooler Bypass Solenoid Valve
29. Main Relay (EMS Box)
30. Fuel Pump Relay (EMS Box)
33. Fuel Heater Relay
31. PTC Heater Relay
32. Glow Relay Unit Assembly
34. Data Link Connector (DLC) [16 pin]
35. Multi-Purpose Check Connector (MPCC) [20 pin]
