2.
Disconnect the VGT control actuator connector (A).
Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Disconnect the VGT control actuator connector (A).
Release the actuator (B) after loosening the actuator mounting bolts (A).
Remove the Electric VGT control actuator after removing the E-ring (A).
Install the sensor in the reverse order of removal.
After replacing the Electric VGT Control Actuator, the "Component Change Routine" procedure should be performed. Otherwise trouble related with engine performance or emission control may occur until ECM learning about the component is completed. .
Turn the ignition switch OFF.
Connect the GDS to Data Link Connector (DLC).
Turn the ignition switch ON.
Select "Vehicle, Model year, Engine, System".
Select "Vehicle S/W Management".

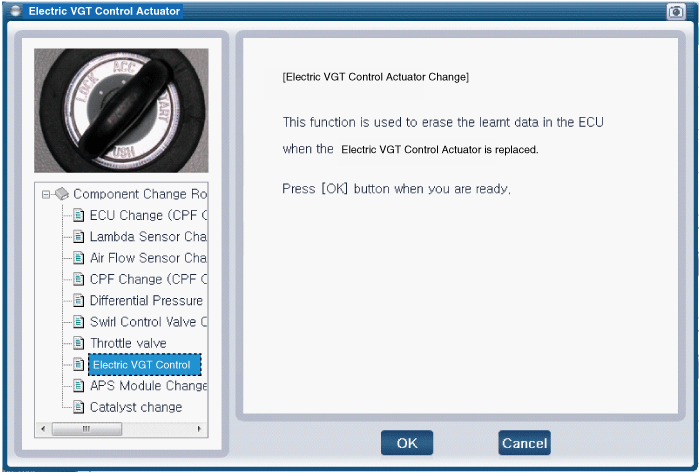

Select "Component Change Routine".
Select "Electric VGT Control Actuator".

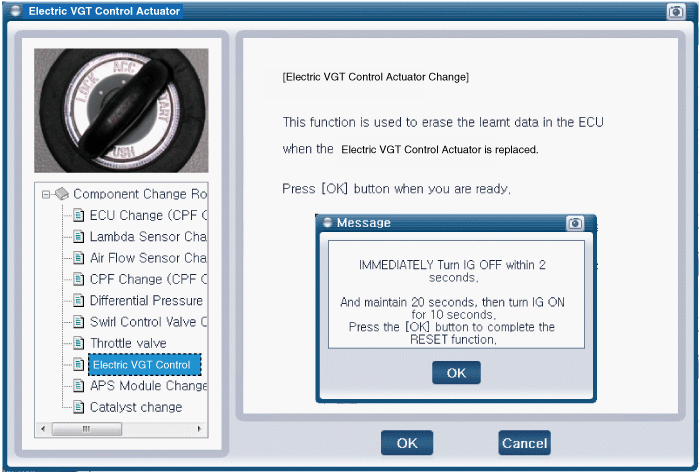

Turn the ignition switch OFF and then turn it ON again in 20 seconds.
