Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the length and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use water-less hand cleaner, to remove any used engine oil. Do not use gasoline, thinners, or solvents.
In order to preserve the environment, used oil and used oil filter must be disposed of only at designated disposal sites.
Drain the engine oil.
Remove the oil filler cap (A).
Remove the oil drain plug (A) and drain the oil into a container.
Clean and install the oil drain plug with a new gasket.
Tightening torque :
34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)
Replace the oil filter.
Remove the oil filter (A) with the SST (09263-02000).
Check and clean the oil filter installation surface.
Check the part number of the new oil filter is as same as old one.
Apply clean engine oil to the gasket of a new oil filter.
Lightly screw the oil filter into place, and tighten it until the gasket contacts the seat.
Tighten it with the torque below.
Tightening torque :
11.8 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)
Fill with new engine oil, after removing the engine oil level gauge.
Capacity
Total : 3.9 L (1.02 U.S.gal., 4.12 U.S.qt., 3.43 lmp.qt.)
Oil pan : 3.3 L (0.87 U.S.gal., 3.48 U.S.qt., 2.90 lmp.qt.)
Drain and refill including oil filter : 3.6 L (0.95 U.S.gal., 3.80 U.S.qt., 3.16 lmp.qt.)
Install the oil filler cap.
Start engine and check for oil leaks.
Recheck the engine oil level.
Check the engine oil quality.
Check for oil deterioration, entry of water, discoloring of thinning.
If the quality is visibly poor, replace the oil.
Check the engine oil level.
After warming up the engine for five minutes, stop the engine and check the oil level. The level should be between the "L" and "F" marks on the dipstick.
If low, check for oil leakage and add oil up to the "F" mark on the dipstick.
Recommendation
For Europe
- ACEA A5 or above / 5W-30
Except europe
- ILSAC GF-4 & API SM, ACEA A5 or above / 5W-20
Allowed Oil Grade
- API SL or above
- ILSAC GF-3 or above
- ACEA A3 or above

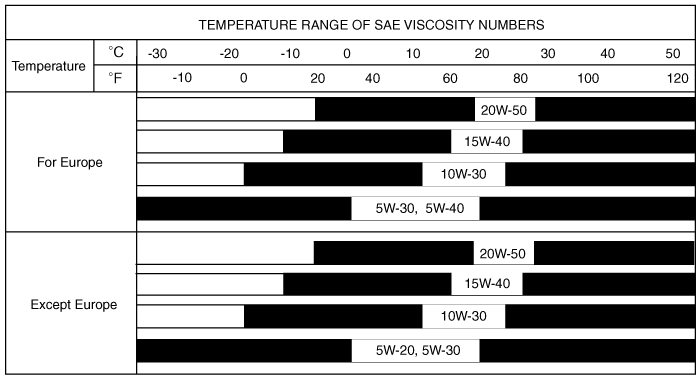

Allowed oil SAE viscosity
