Prolonged and repeated contact with mineral oil will result in the removal of natural fats from the skin, leading to dryness, irritation and dermatitis. In addition, used engine oil contains potentially harmful contaminants which may cause skin cancer.
Exercise caution in order to minimize the duration and frequency of contact of your skin to used oil. Wear protective clothing and gloves. Wash your skin thoroughly with soap and water, or use waterless hand cleaner, to remove any used engine oil. Do not use gasoline, thinner, or solvent.
To preserve the environment, dispose of used oil and oil filter only at designated disposal sites.
Drain the engine oil.
Remove the oil filler cap (A).
Remove the oil drain plug (A) and drain the oil into a container.
Clean and install the oil drain plug with a new gasket.
Tightening torque :
34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)
Replace the oil filter (A).
Using the SST (09263-02000), remove the oil filter (A).
Check and clean the oil filter installation surface.
Check that the part number of the new oil filter is the same as the previous one.
Apply clean engine oil to the gasket of a new oil filter.
Lightly screw the oil filter into place, and tighten it until the gasket contacts the seat.
Tighten it to the torque below.
Tightening torque :
11.8 ~ 15.7 N.m (1.2 ~ 1.6 kgf.m, 8.7 ~ 11.6 lb-ft)
Fill with new engine oil, after removing the engine oil level gauge.
Oil capacity
Total : 3.9 L (4.12 US qt, 3.43 lmp qt)
Oil pan : 3.3 L (3.49 US qt, 2.90 lmp qt)
Drain and refill including oil filter :
3.6 L (3.80 US qt, 3.17 lmp qt)
Install the oil filler cap.
Start engine and check for oil leakage.
Recheck the engine oil level.
Check the engine oil quality.
Check for oil deterioration, entry of water, discoloring of thinning.
If the quality is visibly poor, replace the oil.
Check the engine oil level.
After warming up the engine for five minutes, stop the engine and check the oil level. The level should be between the "L" and "F" marks on the dipstick.
If lower than this, check for oil leakage and add oil up to the "F" mark on the dipstick.
- ACEA A5 or above / 5W-30
- API SL or above
- ILSAC GF-3 or above
- ACEA A3 or above
For best performance and maximum protection of all types of operation, select only those lubricants which :
Satisfy the requirement of the API, ILSAC or ACEA classification.

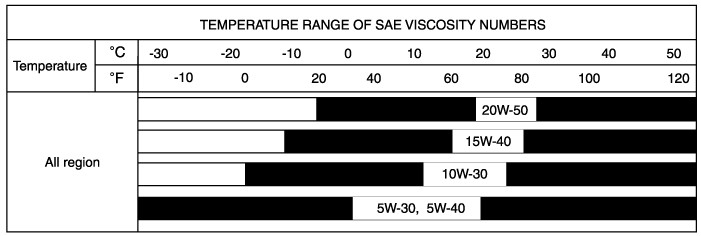

Have proper SAE grade number for expected ambient temperature range.
Lubricants that do not have both an SAE grade number and API, ILSAC or ACEA service classification on the container should not be used.
