1. Radiator

2. Radiator upper hose

3. Filler neck assembly

4. Radiator lower hose

5. Mounting insulator

6. Clamp

7. Cooling fan

8. Fan motor

9. Cooling fan shroud

10. Reservoir tank

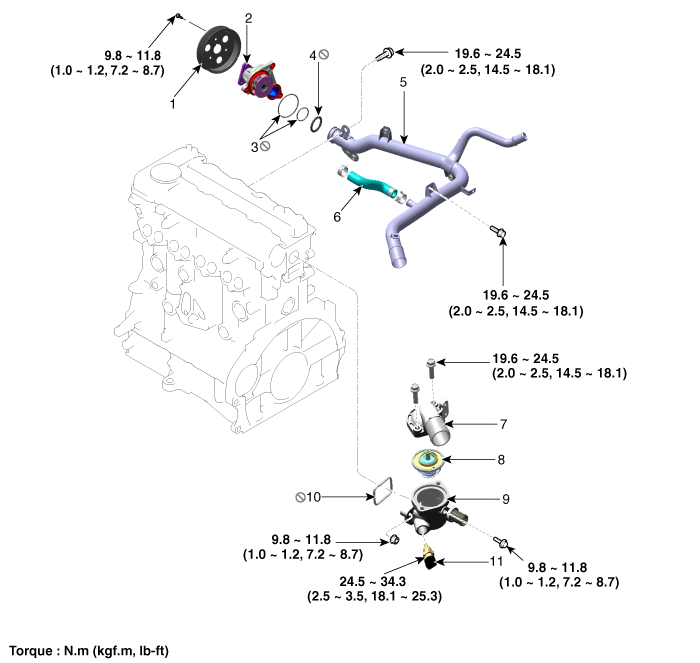

1. Water pump pulley

2. Water pump

3. Water pump O-ring

4. Water return pipe O-ring

5. Water return pipe

6. Oil cooler return hose

7. Thermostat cover

8. Thermostat

9. Thermostat housing

10. Thermostat housing gasket

11. Engine coolant temperature sensor (ECTS)
