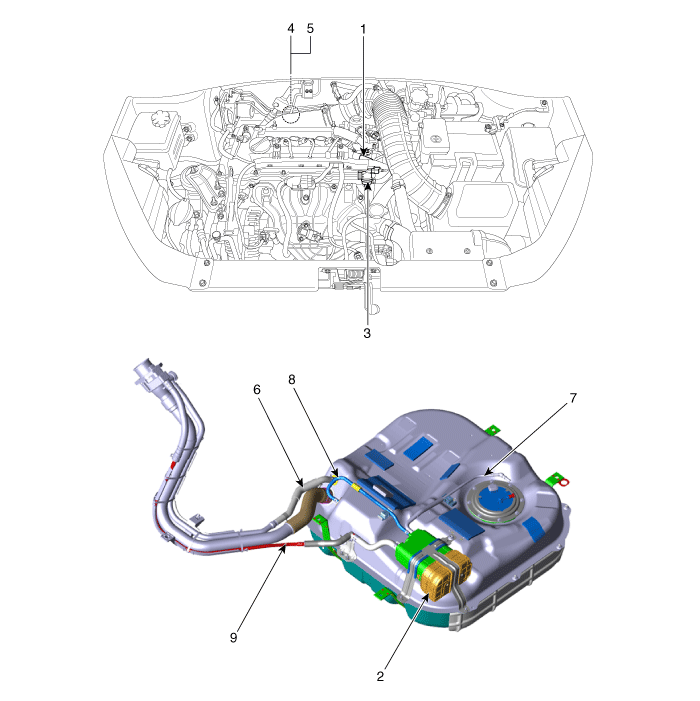

Components Location

1. PCV valve

2. Canister

3. Purge control solenoid valve (PCSV)

4. Catalytic converter (WCC)

5. Catalytic converter (UCC)

6. Leveling Hose

7. Vapor Tube (Canister ↔ Intake Manifold)

8. Vapor Hose (Canister ↔ Fuel Tank)

9. Ventilation Hose (Canister ↔ Atmosphere)

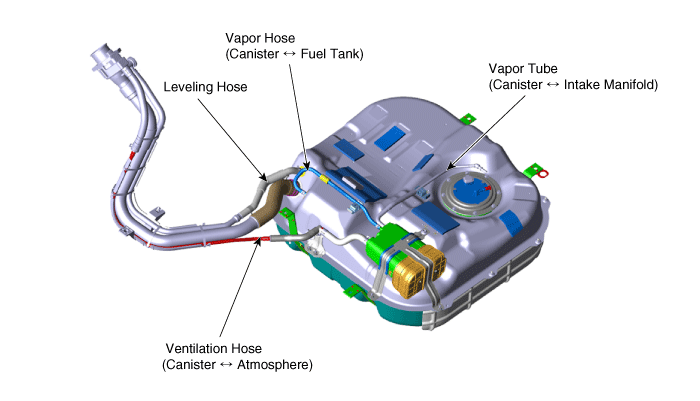

1. PCV valve

2. Canister

3. Purge Control Solenoid Valve (PCSV)

4. Catalytic Converter (WCC)

5. Catalytic Converter (UCC)

6. Leveling Hose

7. Vapor Tube ( Canister ↔ Intake Manifold)

8. Vapor Hose (Canister ↔ Fuel Tank)

9. Ventilation Hose (Canister ↔ Atmosphere)
