Description

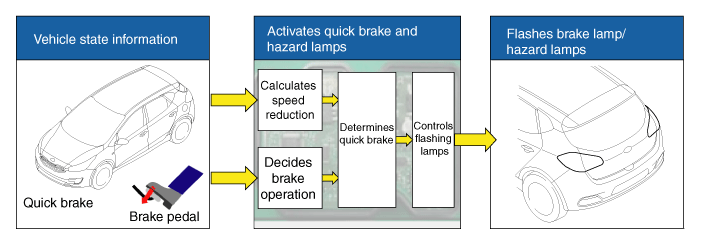

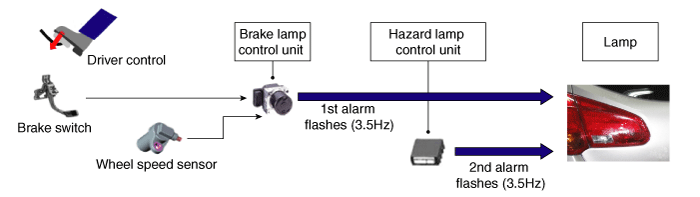

Introduction of quick brake warning system (ESS)

In case of sudden braking by the driver, the brake lamp and/or turn signal flash to warn the vehicle behind.

1.

Basic function (Blinking the brake lamp/emergency lamp)

A.

Operation condition: In case of quick brake or operation of ABS above in a certain speed

B.

Releasing condition: In case of stopping the quick brake or releasing the ABS operation

2.

Additional function (Blinking the turn signal)

A.

Operation condition: In case of quick brake in low speed

B.

Releasing condition: Releasing at the start of driving

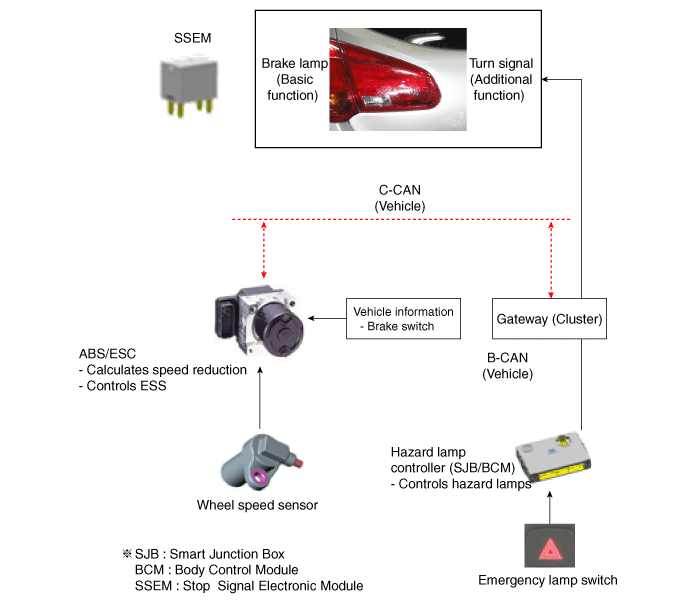

System configuration

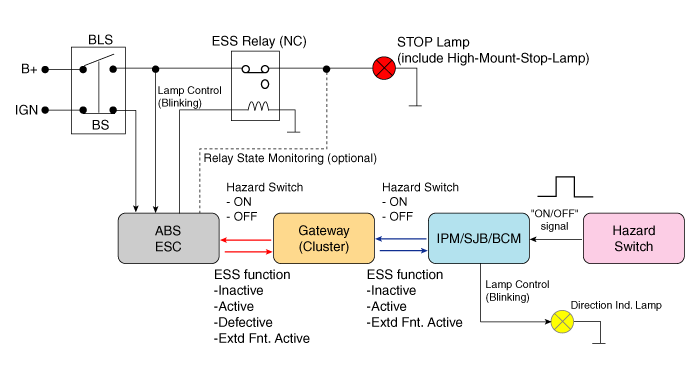

ESS Circuit diagram
