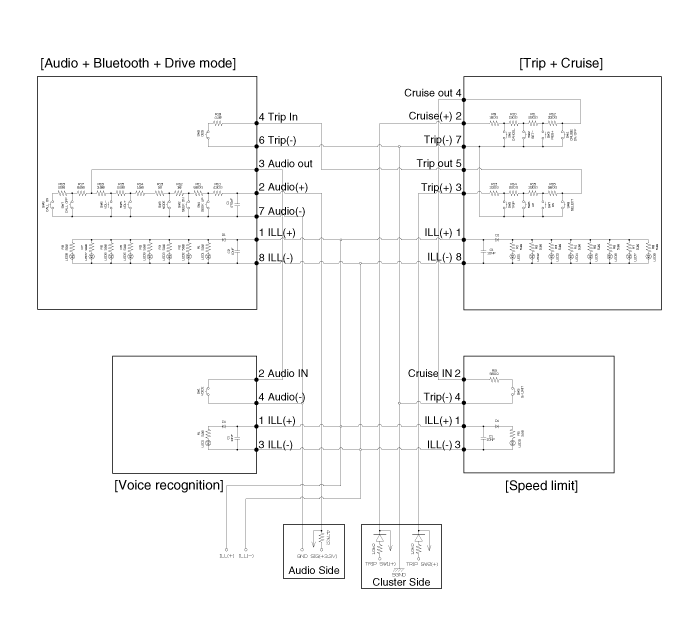

Circuit Diagram

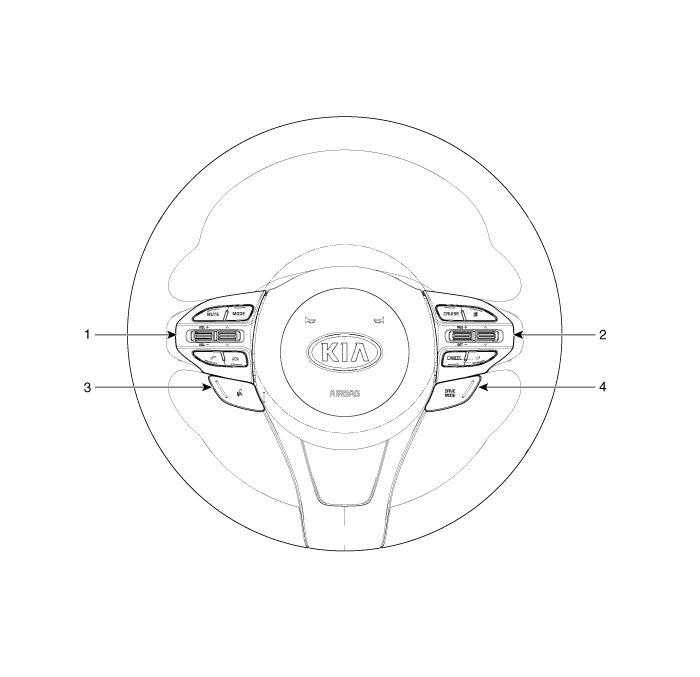

Type A

1. Remote control switch(LH: Audio)

2. Remote control switch(RH: Cruise+Flex)

3. Bluetooth hands free switch

4. Trip switch

Type B

1. Audio & Drive mode swith

2. Trip & Cruise control switch

3. Voice recognition switch

4. Speed limit switch
