4.
Is DTC status displayed as Present?

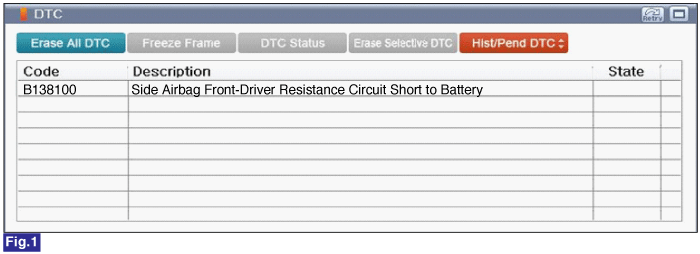

Fig.1) Diagnostic Trouble Code(DTC) is shown above
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
Fig.1) Diagnostic Trouble Code(DTC) is shown above
| ▶ Go to "Monitor GDS Data" procedure. |
| ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition switch "OFF", connect GDS to Data Link Connector(DLC).
Ignition switch "ON" & engine "OFF", select "Current Data" mode.
Monitor "Side Airbag Front-Driver Resistance" parameter on the GDS.
Specification : 1.0Ω＜Side Airbag Front-Driver Resistance(1st stage)＜ 7.2Ω
Reference : Side Airbag Front-Driver Circuit Open : FAIL
Side Airbag Front-Driver Power Circuit short : FAIL
Side Airbag Front-Driver Ground Circuit short : FAIL

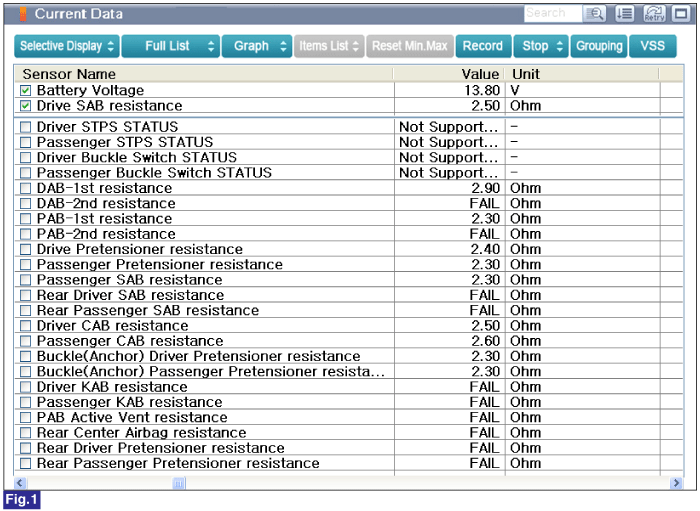

Fig.1) Normal Data
Is parameter displayed within specifications?
| ▶ Malfunctions on the SRSCM are caused by poor harness(es) and terminals. ▶ Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. ▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Terminal and Connector Inspection" procedure. |
