Test Condition
Resistance
Ignition Switch "ON"
1.0Ω < Resistance of Anchor Pretensioner Front-Passeger < 7.2Ω

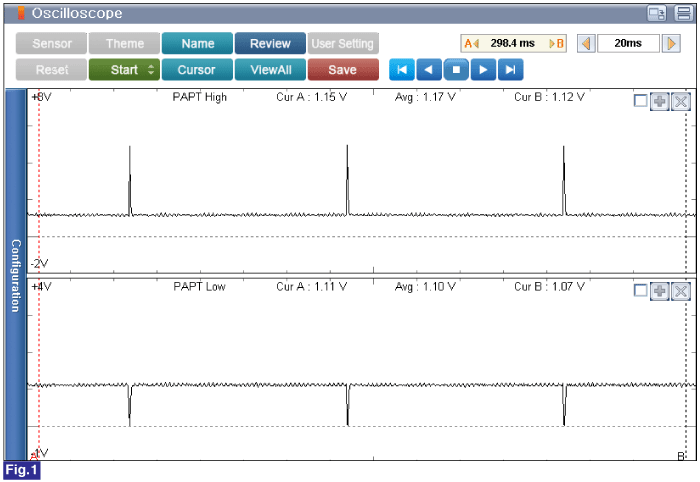

Fig.1) High & Low Signal Waveform of Anchor Pretensioner Front-Passenger(Disconnected Connector)
