Monitor DTC Status
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON"

3.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

4.

Is DTC status displayed as Present?

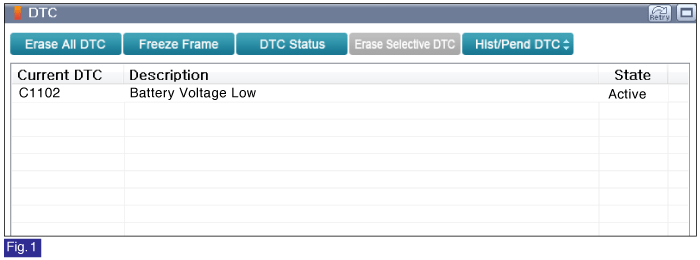

Fig.1) Diagnostic Trouble Code(DTC) is shown above

▶ Go to "Wiring Inspection" procedure.

▶ Go to "Verification of Vehicle Repair" procedue.
