3.
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Fig.1) Diagnostic Trouble Code(DTC) is shown as above
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

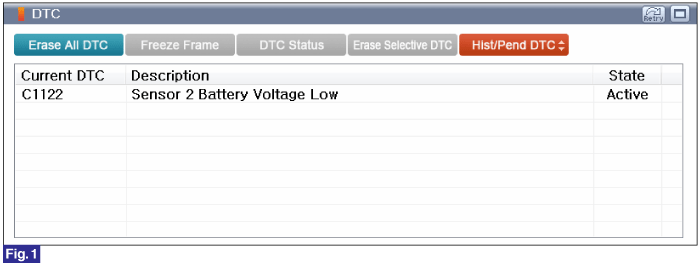

Fig.1) Diagnostic Trouble Code(DTC) is shown as above
Is DTC status displayed as Present?
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to DLC(Data Link Cable).
IG "ON"
Monitor "Sensor 2 Low Batterey" parameter on "Current Data" with GDS.
Specification : OK

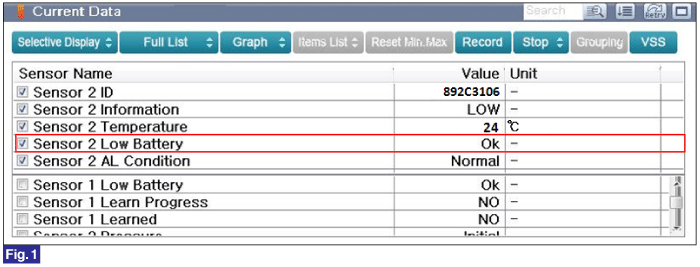

Fig.1) Sensor 2 Low Battery Status - OK
Is parameter within specifications?
| ▶ Fault is intermittent. It has been repaired and TPMS Module memory is not cleared yet. ▶ Go to "Verification of vehicle Repair" procedure. |
| ▶ Substitute with known-good TPMS Sensor 2 and check for proper operation. If problem is corrected, replace TPMS Sensor 2 and then go to "Verification of Vehicle Repair" procedure. ▶ Perfrom "Register Sensor" in "Vehicle S/W Management" with GDS TPMS(Exciter) or drive vehicle with over 15 mi/h(25 km/h) for 10 minutes to complete auto-learning and auto-location, after TPMS Sensor 2 is replaced. ▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
Reference) Register Sensor
1. Connect GDS to Data Link Connector(DLC).
2. Ignition "ON"
3. Select "Register Sensor" in "Vehicle S/W Management" with GDS.
4. Perform following procedure.
Fig.1~8) Register Sensor Procedures
