Monitor GDS Status
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON".

3.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

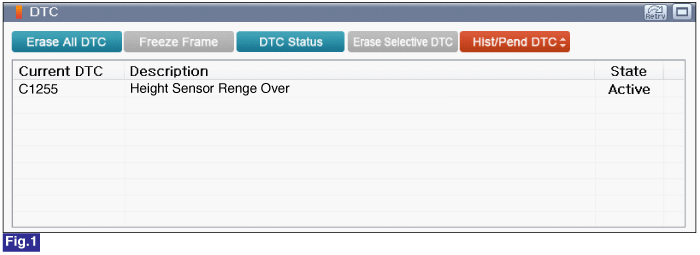

Fig.1) Diagnostic Trouble Code(DTC) is shown above

4.

Is DTC status displayed as Present?

▶ Go to "Monitor GDS DATA" procedure.

▶ Go to "Verification of Vehicle Repair" procedure.

Monitor GDS Data
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON" & Engine "OFF".

3.

Check the "Current Data" about related DTC with GDS.

Fig.1) Current Data of AHLS

∴ Degree of the height sensor is measured from 6 O'clock direction to 9 O'clock direction.

(6 O'clock direction = 0°, 9 O'clock direction = 90° / Normal Range = 0 ~ 90°)

4.

Are the parameters displayed normally?

▶ The system is operating correctly at this time. Go to "Verification of vehicle Repair" procedure.

▶ Go to "Terminal and Connector inspection" procedure.
