GDS Data Analysis
1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON"

3.

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

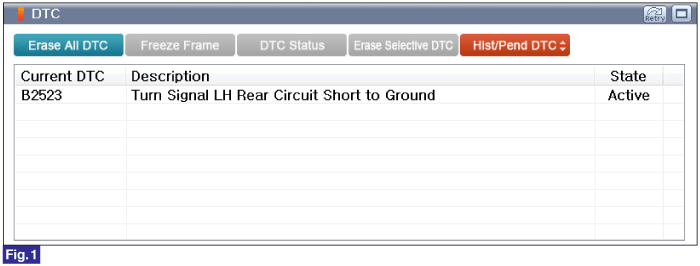

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

4.

Is DTC status displayed as Present?

▶ Go to "Monitor GDS Data" procedure.

▶ Go to "Verification of Vehicle Repair" procedure.

Monitor GDS Data
1.

IG "ON" & ENG "OFF"

2.

Select "Current data" and "Actuation Test" mode.

3.

Perfom "Turn LH Output" in the "Actuation Test" with GDS.

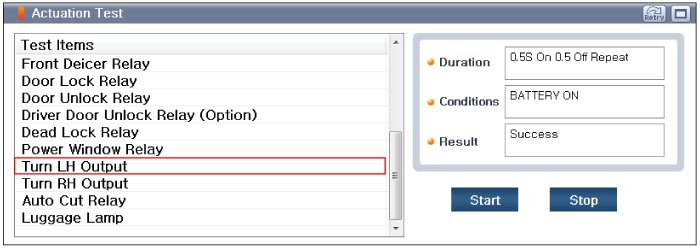

Fig.1) Rear LH Turn Signal blinks when performing "Turn LH Output" in the "Actuation Test"

4.

Is the Rear LH Turn Signal Lamp operating properly?

▶ Go to "Verification of Vehicle Repair" procedure.

▶ Go to "Terminal and Connector Inspection" procedure.
