Connect GDS to Data Link Connector(DLC).

Ignition "ON"

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

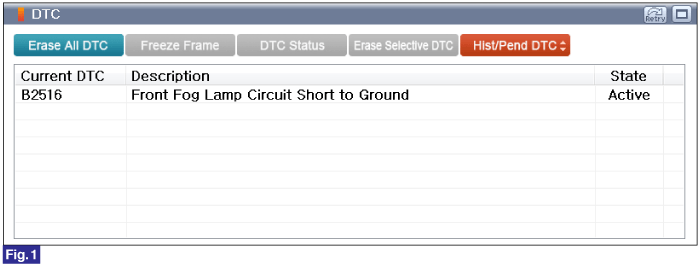

Fig.1) Diagnostic Trouble Code(DTC) is shown as above

Is DTC status displayed as Present?

	▶ Go to "Monitor GDS Data" procedure.
	▶ Go to "Verification of Vehicle Repair" procedure.

IG "ON" & ENG "OFF"

Select "Current data" and "Actuation Test" mode.

Monitor "Front Fog Lamp Relay" in the "Current Data" and Perfom "Front Fog Lamp Output" in the "Actuation Test" with GDS.

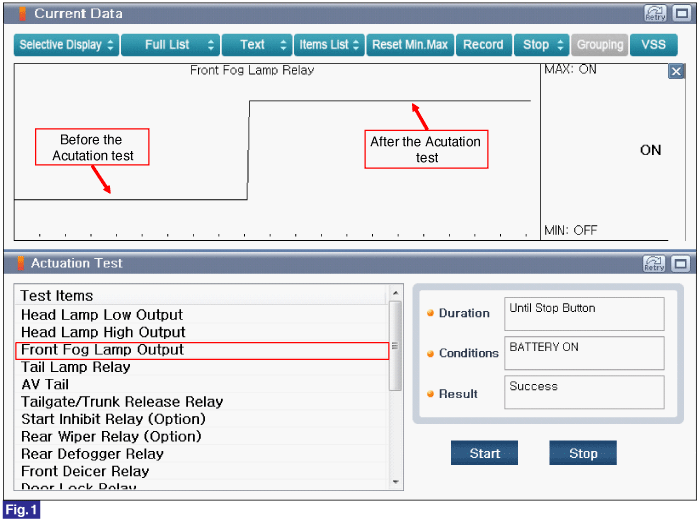

Fig.1) "Front Fog Lamp Output" parameter shows "ON" when the Front Fog Lamp operates properly on Actuation test of "Front Fog Lamp"

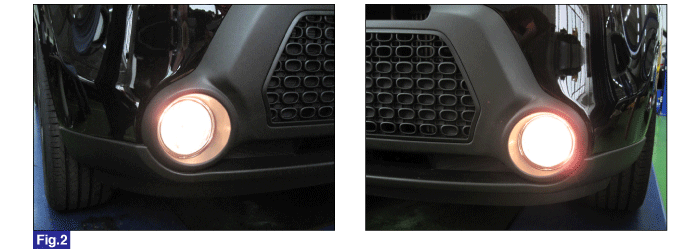

Fig.2) When the Front Fog Lamp operates on performing Actuation Test of "Front Fog Lamp"

Is the Front Fog Lamp operating properly?

	▶ Go to "Verification of Vehicle Repair" procedure.
	▶ Go to "Terminal and Connector Inspection" procedure.
