4.
Is DTC status displayed as Present?

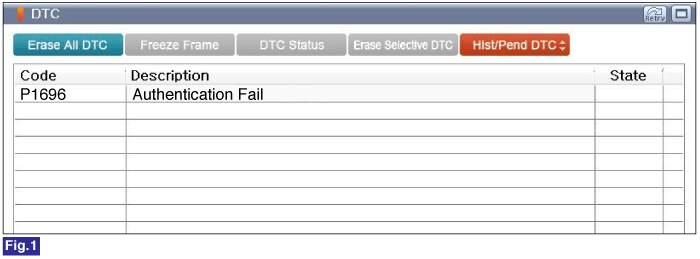

Fig 1) Diagnostic Trouble Code(DTC) is shown above
 | ▶ Go to "Monitor GDS Data" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
Connect GDS to Data Link Connector(DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes(DTC)" with GDS.
Is DTC status displayed as Present?
Fig 1) Diagnostic Trouble Code(DTC) is shown above
| ▶ Go to "Monitor GDS Data" procedure. |
| ▶ Go to "Verification of Vehicle Repair" procedure. |
Ignition "ON" & Engine "OFF"
Erase DTC after connecting GDS.
Check Smart key status in "Vehicle S/W management", if DTC is retrieved.
Fig 1) Select "SMK Status Information" in "Vehicle S/W Management"
Fig 2) Displays number of registered key and learning status.
Is the Smart key unit learnt status ?
| ▶ Fault is intermittent caused by poor contact in Smart Key unit and/or PCM's connector or was repaired and Smart Key unit and memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure. |
| ▶ Go to "Wiring Inspectionn" procedure. |
