Component Inspection
■ Perform PCSV Actuation Test
1.

Connect GDS to Data Link Connector(DLC).

2.

IG KEY "ON" & ENG "OFF".

3.

Perform "Actuation Test" for PCSV.

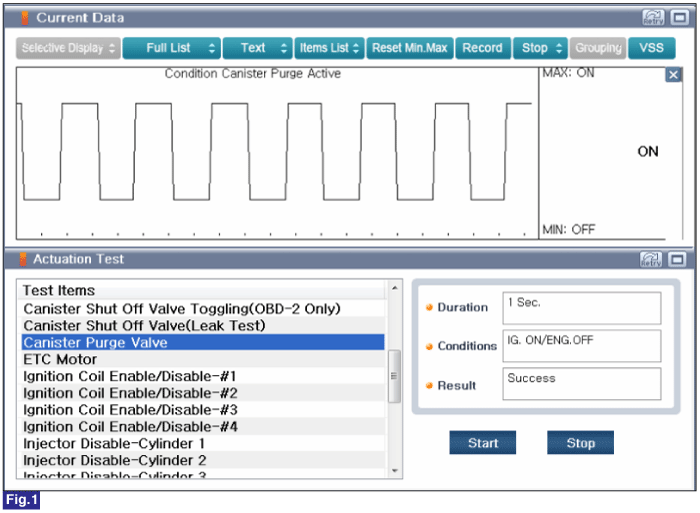

Fig.1) Canister Purge Valve Actuation Test

■ Inspect PCSV
4.

IG Key "OFF".

5.

Disconnect PCSV connector.

6.

Measure resistance between power and control terminal of the PCSV. (Component Side)

Specification : Approx. 2.0kΩ [20°C (68°F)]

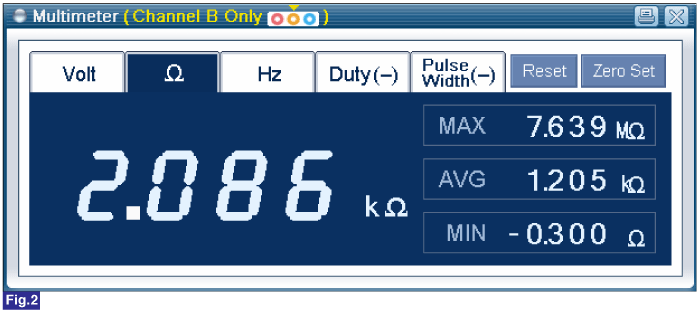

Fig.2) Resistance of PCSV

■ Confirm Part Inspection
7.

Does the PCSV operate properly? (Check variation)

▶ Go to "System Inspection" procedure.

▶ Carefully re-do this troubleshooting guide steps.

▶ If problem still occurs, replace PCSV and then go to "System Inspection" procedure.
