1.

Connect GDS to Data Link Connector(DLC).

2.

Ignition "ON".

3.

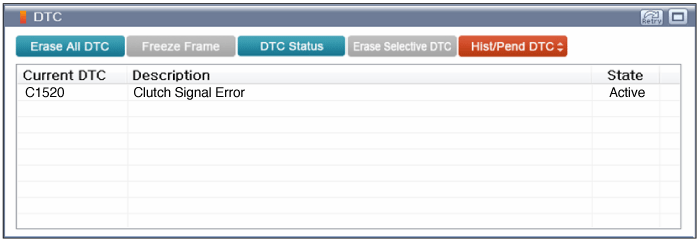

Monitor "Diagnostic Trouble Codes(DTC)" with GDS.

4.

Is DTC status displayed as Present?

▶ Go to "Wiring Inspection" procedure.

▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors(and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

5.

Ignition "ON" or Engine "ON".

6.

Operate Clutch Pedal.

7.

Monitor "Clutch Switch(M/T Only)" and "Clutch is Pushed more than 10%" parameter in Engine System "Current Data" with GDS.

Specification : Refer to Figure below

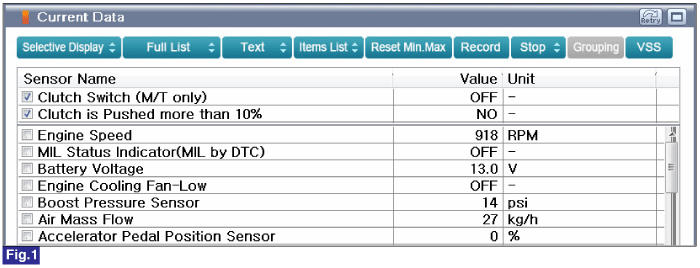

Fig.1) Clutch Current Data in Engine System when clutch is not pushed.

Fig.2) Clutch Current Data in Engine System when clutch is pushed.

8.

Is parameter displayed within specification?

▶ Go to "Wiring Inspection" procedure.

▶ Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors ( and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.

▶ Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
