Component Inspection
■ Check ECTS performance
1.

IG KEY "OFF".

2.

Disconnect ECTS connector.

3.

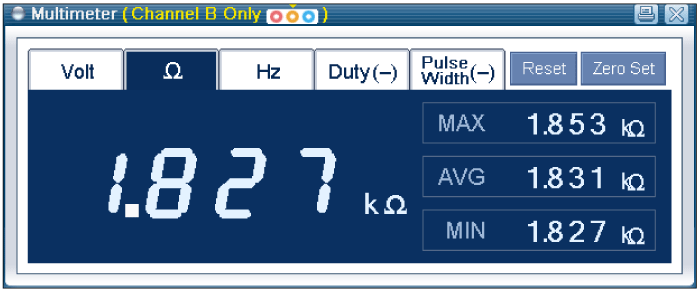

Measure resistance between Pin No.3(Signal) terminal and Pin No.1(Ground) terminal of the ECTS. (Component Side)

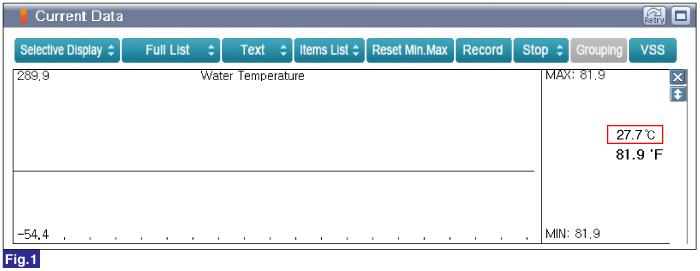

Specification : Approx. 1.8 kΩ at 27.7°C(81.9 °F)

Fig.1) Resistance of ECTS

Temperature[℃(℉)]

Resistance[kΩ]

Temperature[℃(℉)]

Resistance[kΩ]

-40(-40)

48.14

40(104)

1.15

-20(-4)

14.13~16.83

60(140)

0.59

0(32)

5.79

80(176)

0.32

20(68)

2.31~2.59

-

-

4.

Does the ECTS operate properly? (Check variation)

▶ Go to "Verification of Vehicle Repair" procedure.

▶ If no problems were found with the circuits or connectors, Replace the ECTS.
