Component Location

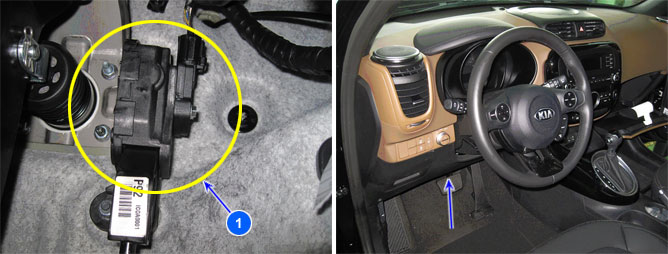

1. Accel Pedal Position Sensor

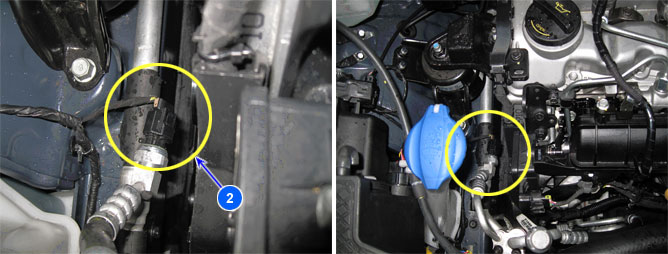

2. A/C Refrigerant Pressure Sensor

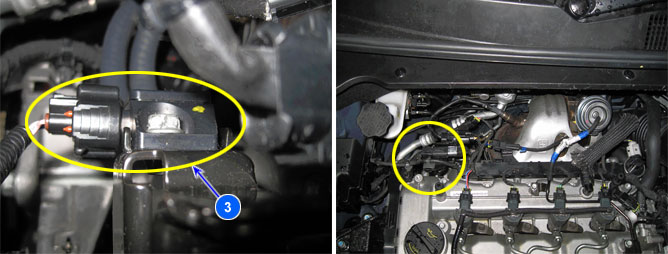

3. DPF Differential Pressure Sensor

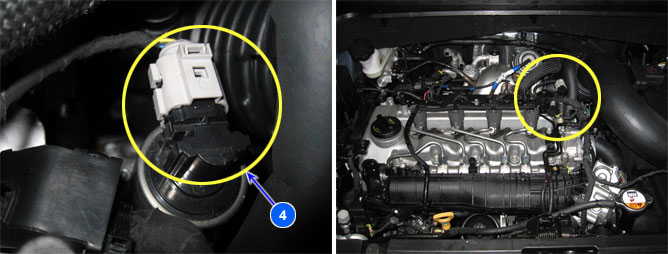

4. EEGR Actuator

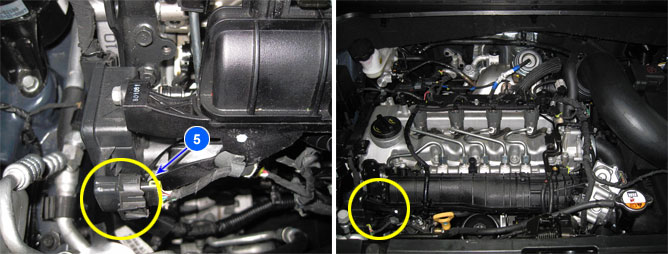

5. Variable Swirl Actuator

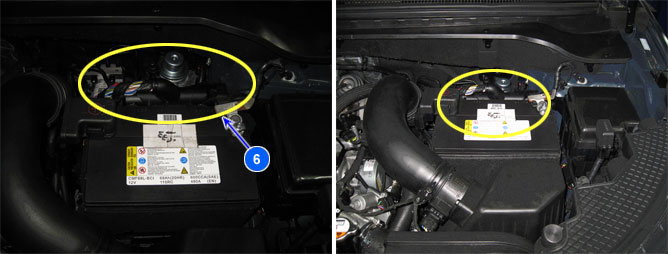

6. ECM/PCM(Barometric Sensor Integrated)
