Terminal and Connector Inspection
1.

Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.

2.

Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

3.

Has a problem been found?

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

▶ Go to "Fuel Rail Pressure Sensor Circuit Inspection" procedure.

Fuel Rail Pressure Sensor Circuit Inspection
■ Power circuit inspection
1.

Ignition Switch "OFF"

2.

Refer to "Shop Manual" and disconnect the RPS connector.

3.

Ignition Switch "ON"

4.

Measure voltage between Pin No. 1(power) of the RPS and chassis ground.

Specification : Approx. 5V

5.

Is the measured value withing specification?

▶ Go to "Ground Circuit Inspection" procedure.

▶ GRepair as necessary and go to "Verification of Vehicle Repair" procedure.

■ Ground Circuit Inspection
6.

Ignition Switch "OFF"

7.

Disconnect battery (-) cable.

8.

Refer to "Shop Manual" and disconnect the RPS connector.

9.

Measure resistance between Pin No. 3(ground) of the RPS and chassis ground.

Specification : Approx. below 1Ω

10.

Ignition switch "OFF"

11.

Refer to "Shop Manual" and disconnect the RPS connector.

12.

Ignition switch "ON"

13.

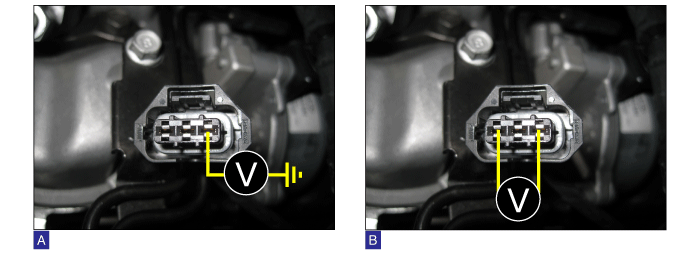

Measure voltage of Pin No. 1(Power) of the RPS connector and chassis ground.(A)

14.

Measure voltage between Pin No. 1(Power) and Pin No. 3(Ground) of the RPS connector.(B)

Specification : Difference (A) and (B) is less then 200 mV

15.

Is the measured value withing specification?

▶ Go to "Control Circuit Inspection" procedure.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

■ Control Circuit Inspection
16.

Ignition Switch "OFF"

17.

Refer to "Shop Manual" and disconnect the RPS connector.

18.

Ignition Switch "ON"

19.

Measure voltage between Pin No. 2(signal) of the RPS and chassis ground.

Specification : Approx. 5V

20.

Is the measured value withing specification?

▶ Go to "Fuel Pressure Regulator Valve Circuit Inspection" procedure.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Fuel Pressure Regulator Valve Circuit Inspection
■ Power circuit inspection
1.

Ignition Switch "OFF"

2.

Refer to "Shop Manual" and disconnect the FPRV connector.

3.

Ignition Switch "ON"

4.

Measure voltage between Pin No. 1(power) of the FPRV and chassis ground.

Specification : Approx. 5V

5.

Is the measured value withing specification?

▶ Go to "Control Circuit Inspection" procedure.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.

■ Control Circuit Inspection
6.

Ignition Switch "OFF"

7.

Refer to "Shop Manual" and disconnect the FPRV connector.

8.

Ignition Switch "ON"

9.

Measure voltage between Pin No. 2(signal) of the FPRV and chassis ground.

Specification : Approx. 3.6V

10.

Is the measured value withing specification?

▶ Go to "Component Inspection" procedure.

▶ Repair as necessary and go to "Verification of Vehicle Repair" procedure.
