3.
Perform "Actuation Test" for FPR.

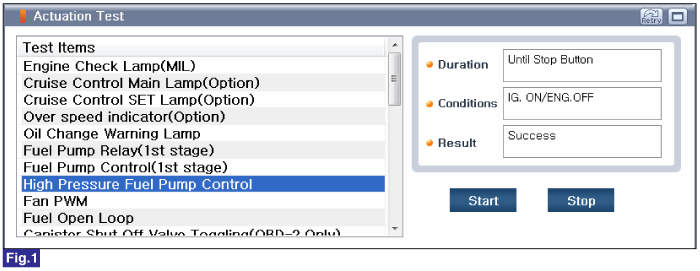

Fig.1) High Pressure Fuel Pump Control Actuation Test
Connect GDS to Data Link Connector(DLC).
IG KEY "ON" & ENG "OFF".
Perform "Actuation Test" for FPR.
Fig.1) High Pressure Fuel Pump Control Actuation Test
Does the High Pressure Fuel Pump operate properly? (Check variation)
 | ▶ Replace High Pressure Fuel Pump, and go to "Verification of Vehicle Repair" procedure. |
 | ▶ Go to "Verification of Vehicle Repair" procedure. |
